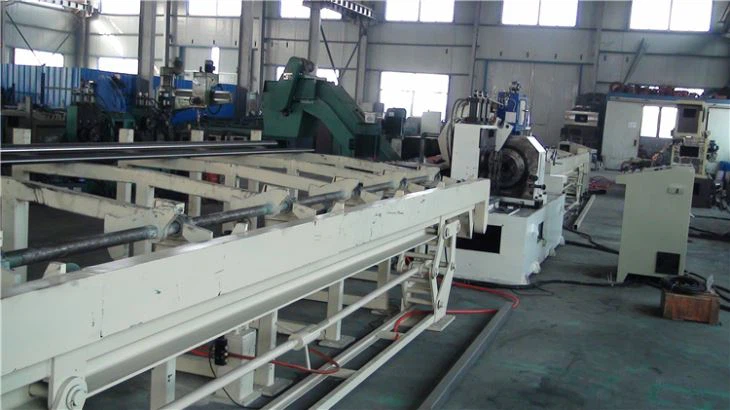

High Precision Aluminium Bar Peeler

Our high precision aluminum bar peeler can process aluminum bar with diameter range : φ5-φ500mm. The efficiency is several times so more than 10 times superior to ordinary lathe, greatly reducing numbers of workers and equipment cost. Aluminum bar peeler includes two types: semi-automatic (C) and CNC (S).

Chat Now

Product Details

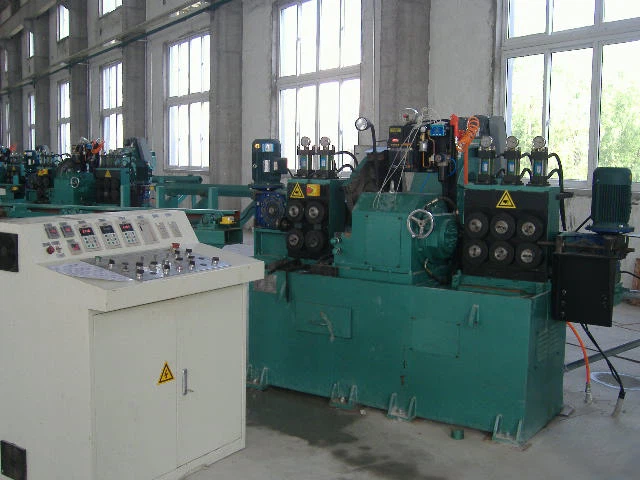

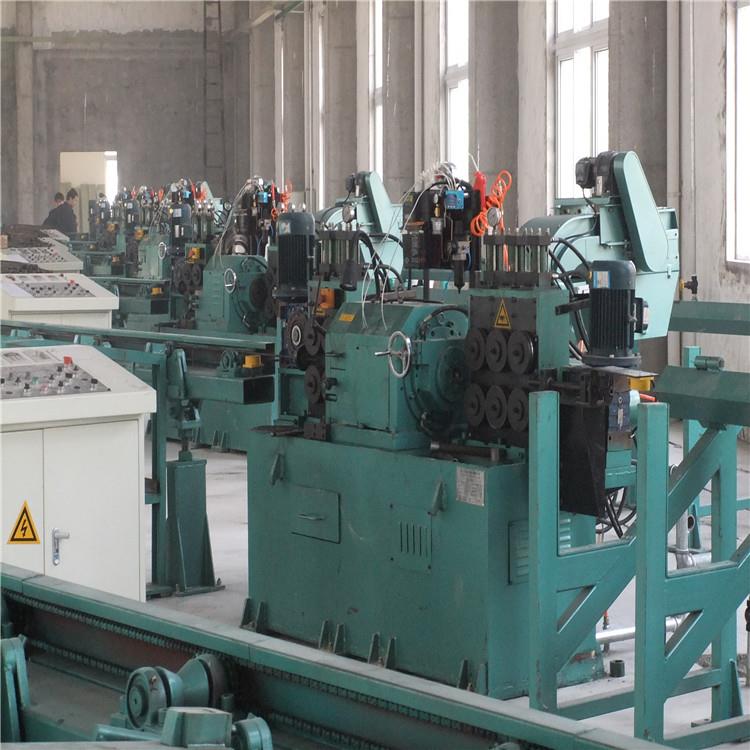

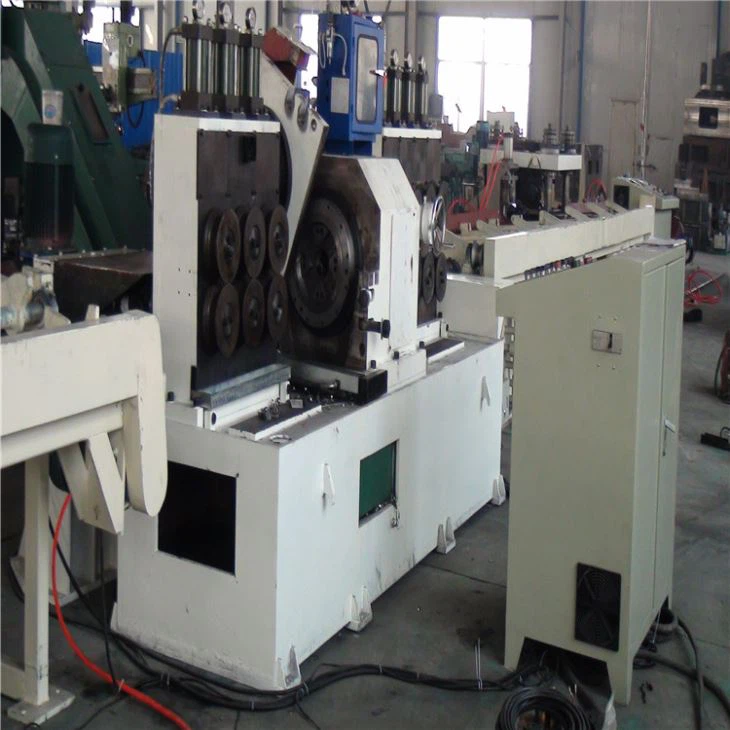

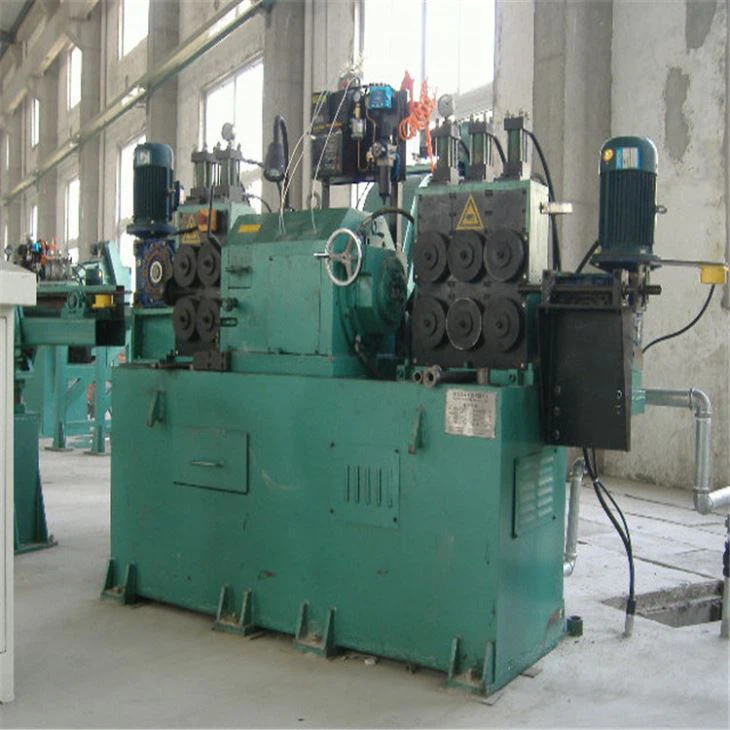

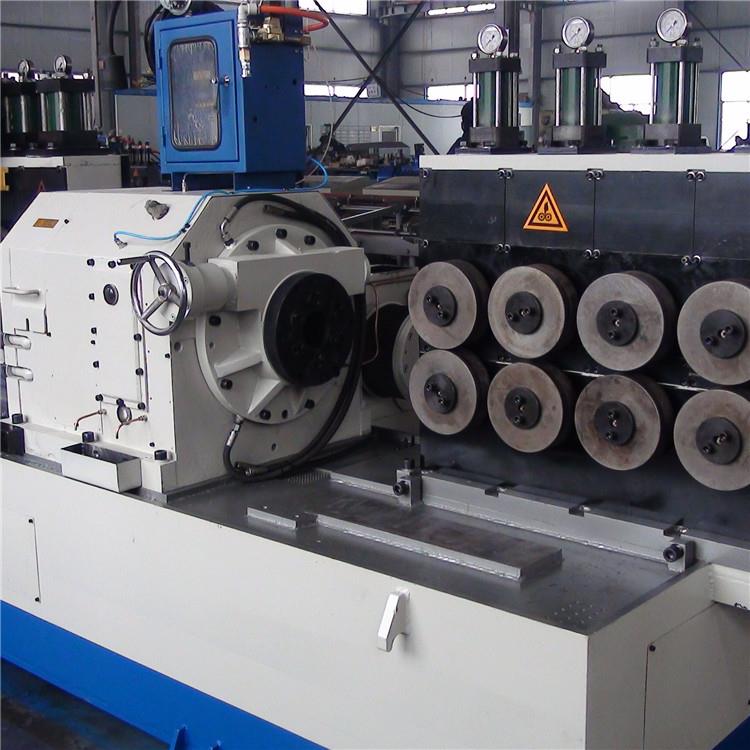

high precision aluminium bar peeler

Yantai Haige Machine Tools Co.,Ltd is China biggest and best high precision aluminium bar peeler manufacturer. Our high precision aluminum bar peeler can process aluminum bar with diameter range : φ5-φ500mm. The efficiency is several times so more than 10 times superior to ordinary lathe, greatly reducing numbers of workers and equipment cost. Aluminum bar peeler includes two types: semi-automatic (C) and CNC (S). Aluminum is usually composed of main machine and the table bed. Mainly composed of main machine , table bed, air/oil lubrication system , cutting fluid circulation , chip conveyor , hydraulic system and electric system, etc.




Main Technical Parameters—WXC100CA

Specification

WXC100CA (semi-auto)

RAW
MATERIALS

Diameter Range(mm)

Φ25~Φ105

Raw Material Length(mm)

≥2200

Tensile Strength (Mpa)

≤1100

Surface Hardness

≤HB320

Curvature(mm/m)

≤1.50①

Diameter Tolerance

According to GB 702-88 second group

Roundness(mm)

≤50% of the diameter tolerance

Surface Roughness(Ra)

≤25~50μm

FINISHED
GOODS

Diameter Range(mm)

Φ24~Φ103

Unilateral Cutting Depth (mm)

0.25~2.5

Diameter Tolerance

≤h10 (standard tolerance grade)

Surface Roughness(Ra)

≤3.2-6.3μm

Roundness(mm)

≤0.04

Feeding Cutting Speed(m/min)

0-10.0(for continuous chips and high strength
and hardness should reduce the speed)

Cutter Head Rotational Speed(rpm)

240-800

Main Machine Motor Power(KW)

75/90

Feeding motor (KW)

5.5 (clamping feeding ) + 0.75 (extraction )

Main Machine Weight
(including auxiliary weight) (T)

10.0 (12.5)

Total Capacity(KW)

95/110

Compressed Air Source
(user prepare by themselves)

0.5-0.8Mpa,1.8m3/min、0.8m3 gasholder、two-stage oil-water separator
and compressed air freezing drier.
