Semi Automatic Bright Bar Peeler

Compared CNC bright bar peeler, semi automatic bright bar peeler has cheap price and meet user need. Semi automatic surface roughness can achieve h10 diameter tolerance and roughness between 6.3 μm-3.2μm.

Chat Now

Product Details

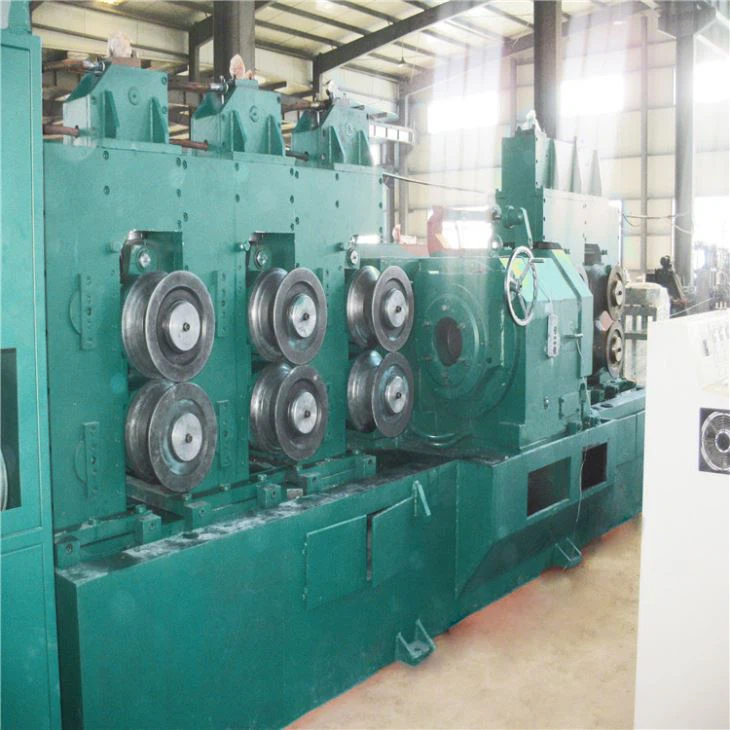

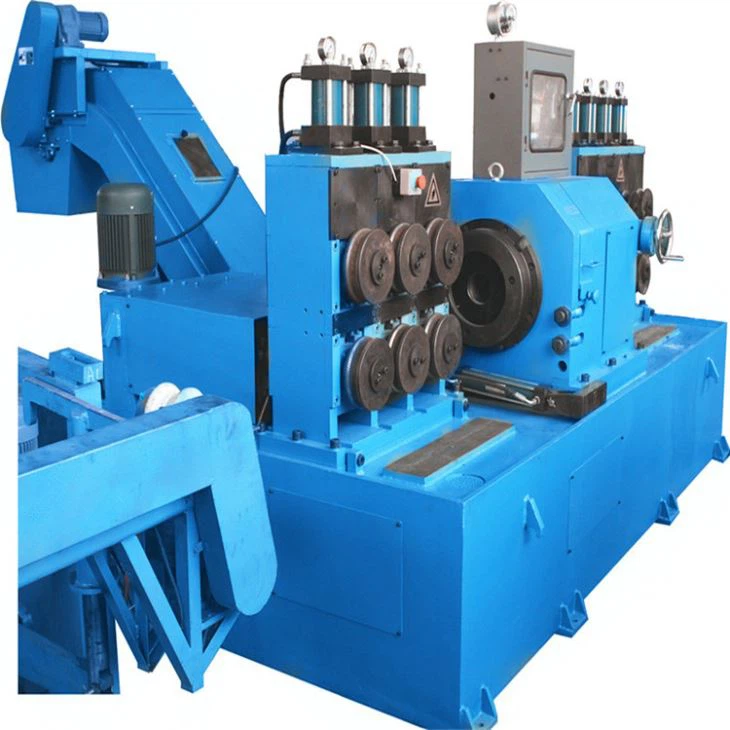

semi automatic bright bar peeler

Yantai Haige Machine Tools Co.,Ltd is China biggest and best CNC bright bar peeler and semi automatic bright bar peeler manufacturer . Compared CNC bright bar peeler,  semi automatic bright bar peeler has cheap price and meet user need. Semi automatic surface roughness can achieve h10 diameter tolerance and roughness between 6.3 μm-3.2μm. Semi automatic bright bar peeler needs operator has high skill on machine adjusting and basic knowledge.



Main Technical Parameters--WXC350C

Specification

WXC350C

RAW
MATERIALS

Diameter Range(mm)

Φ150~Φ355

Raw Material Length(mm)

≥4500

Tensile Strength (Mpa)

≤1100

Surface Hardness

≤HB320

Curvature(mm/m)

≤1.50

Diameter Tolerance

According to GB 702-2004 second group

Roundness(mm)

≤50% of the diameter tolerance

Surface Roughness(Ra)

≤25~50μm

FINISHED
GOODS

Diameter Range

Φ149~Φ355

Unilateral Cutting Depth (mm)

0.25~1.0

Diameter Tolerance

≤IT9 (standard tolerance grade)

Surface Roughness(Ra)

≤6.3μm

Roundness(mm)

≤0.03

Feeding Cutting Speed(m/min)

0.1-1.0(for continuous chips and high strength
and hardness should reduce the speed)

Cutter Head Rotational Speed(rpm)

430~1200

Main Machine Motor Power(KW)

55

Auxiliary Machine Motor Power(KW)

5.5 X 2(Four Poles)

Main Machine Outline Dimensions
(Length*Width*Height) m

8m * 5m * 5.5m

Full Set Machine Outline Dimensions
(including auxiliary machine)
(Length*Width*Height) m

22m X 8m X 8.5m

Main Machine Weight
(including auxiliary weight) (T)

60t(only for your reference)

Total Capacity(KW)

400kw

Compressed Air Source
(user prepare by themselves)

0.5-0.8Mpa,1.8m3/min、0.8m3 gasholder、two-stage oil-water separator and compressed air freezing drier.
