High Precision Copper Bar Peeler

The peeler can peel copper bar with dia : φ5-φ500. High precision Copper bar includes 2 types : semi-auto peeler and CNC peeler. CNC peeler can realize online tools adjustment without stopping machine first while semi-auto peeler has to stop first ,then adjust manually.

Chat Now

Product Details

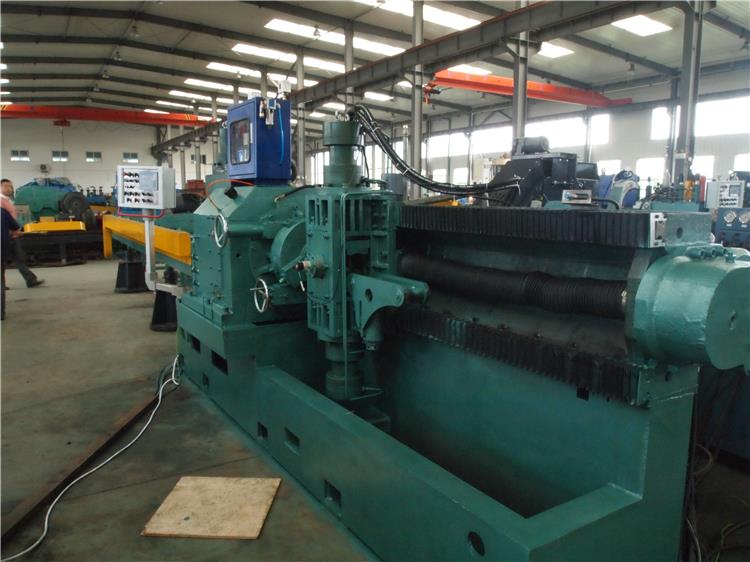

high precision copper bar peeler

Yantai Haige Machine Tools Co.,Ltd specializes in high precision copper bar peeler for 20 years.  The peeler can peel copper bar with dia : φ5-φ500. High precision Copper bar includes 2 types : semi-auto peeler and CNC peeler. CNC peeler can realize online tools adjustment without stopping machine first while semi-auto peeler has to stop first ,then adjust manually. CNC copper bar can reach bar diameter tolerance h9, surface roughness is Ra ≤3.2. Semi-auto high precision copper bar peeler can achieve diameter tolerance h10, surface roughness Ra ≤6.3.




Main Technical Parameters—WXC160S

MODEL

WXC160S

RAW
MATERIALS

Diameter Range(mm)

Φ50~Φ160

Raw Material Length(mm)

≥4000

Tensile Strength(Mpa)

≤1100

Surface Hardness

≤HB320

Curvature(mm/m)

≤1.50

Diameter Tolerance

According to GB 702-2004 second group

Roundness(mm)

≤50% of the diameter tolerance

Surface Roughness(Ra)

≤25-50μm

FINISHED
GOODS

Diameter Range

Φ49~Φ155

Unilateral Turning Depth (mm)

0.5~2.50

Diameter Tolerance

≤IT10 (standard tolerance grade)

Surface Roughness(Ra)

≤6.3μm

Roundness(mm)

≤0.05

Feeding Cutting Speed(m/min)

0.5-3 (for continuous chips and high strength and hardness should reduce the cutting speed)

Cutter Head Rotational Speed(rpm)

60~800

Host Machine Motor Power(KW)

160

Auxiliary Machine Motor Power(KW)

15

Host Machine Outline Dimensions
(Length*Width*Height) m

5.5m * 3m * 2.5m

Full Set Machine Outline Dimensions
(Including auxiliary) (Length*Width*Height) m

18m X 3.5m X 3m

Host Machine Weight
(including auxiliary weight) (t)

30 (20)

Total Installed Capacity(KW)

210

Compressed Air Source
(users prepare by themselves)

0.5~0.8MPa、1.8m3/min、more than 0.8 m3 gasholder, two-stage oil-water separator and compressed air freezing drier
