Semi Automatic Copper Bar Peeler

Semi automatic copper bar peeler made by Yantai Haige Machine Tools Co.,Ltd is widely used in bright bar industry, fastener industry, auto parts industry. Springs industry , hydraulic industry, bearings industry and machining industry .

Chat Now

Product Details

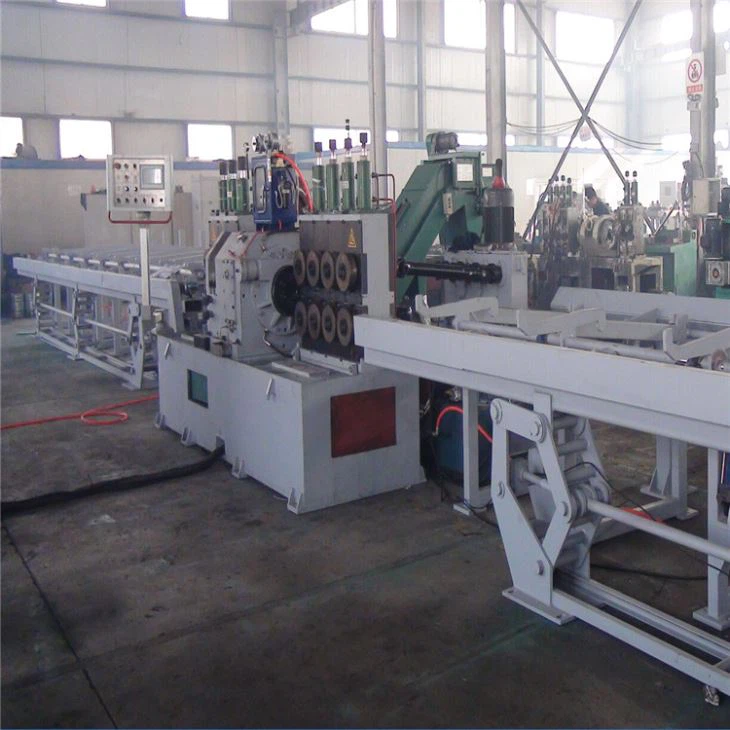

semi automatic copper bar peeler

Semi automatic copper bar peeler made by Yantai Haige Machine Tools Co.,Ltd is widely used in bright bar industry, fastener industry, auto parts industry. Springs industry , hydraulic industry, bearings industry and machining industry . It can wipe off the defect on bar surface , such as surface crack, oxide layer, decarburized layer with high precision and surface roughness. Besides, it can process over-length bar and tube, as well as wire rod, including wire rod to wire rod, wire rod to bar. It is no pollution , all the scraps can be recycled.




Main Technical Parameters—WXC80C

Specification

WXC80C(semi-auto)

RAW
MATERIALS

Diameter Range(mm)

Φ20~Φ85

Raw Material Length(mm)

≥2200

Tensile Strength (Mpa)

≤1100

Surface Hardness

≤HB320

Curvature(mm/m)

≤1.50①

Diameter Tolerance

According to GB 702-2004 second group

Roundness(mm)

≤50% of the diameter tolerance

Surface Roughness(Ra)

≤25~50μm

FINISHED
GOODS

Diameter Range

Φ19~Φ79

Unilateral Cutting Depth (mm)

0.25~1.0

Diameter Tolerance

≤IT9 (standard tolerance grade)

Surface Roughness(Ra)

≤6.3μm

Roundness(mm)

≤0.03

Feeding Cutting Speed(m/min)

1.0-10.0(for continuous chips and high strength
and hardness should reduce the speed)

Cutter Head Rotational Speed(rpm)

430~1200

Main Machine Motor Power(KW)

55

Auxiliary Machine Motor Power(KW)

5.5 X 2(Four Poles)

Main Machine Outline Dimensions
(Length*Width*Height) m

3.0m X 3.5m X 2.4m

Full Set Machine Outline Dimensions
(including auxiliary machine)
(Length*Width*Height) m

15.0m X 5.0m X 2.4m

Main Machine Weight
(including auxiliary weight) (T)

8.0 (11.5)

Total Capacity(KW)

75

Compressed Air Source
(user prepare by themselves)

0.5-0.8Mpa,1.8m3/min、0.8m3 gasholder、two-stage oil-water separator
and compressed air freezing drier.
