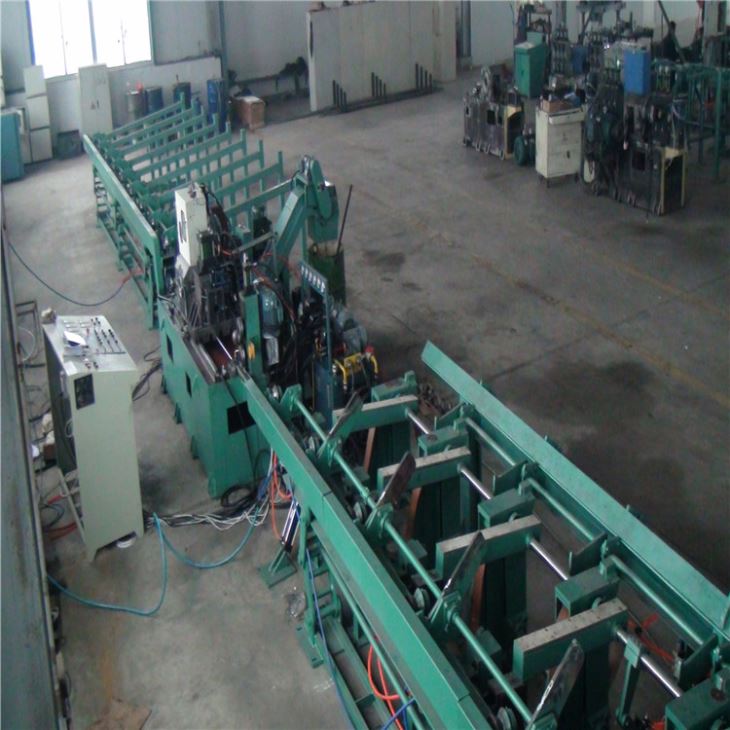

CNC Hydraulic Parts Peeler

Our CNC hydraulic parts peeler can be used in bright bar making line for hydraulic parts, fasteners, auto parts , springs, hydraulics , bearings and machining parts, etc. It with straightening machine and belt polishing machine compose the bright bar making line. CNC system is Siemens while electric parts use Schneider , etc.

Chat Now

Product Details

CNC hydraulic parts peeler

Yantai Haige Machine Tools Co.,Ltd is China biggest and best metal peeling machine , straightening machine (multi-rolls & 2 rolls ) and abrasive belt polishing machine . Our CNC hydraulic parts peeler can be used in bright bar making line for hydraulic parts, fasteners, auto parts , springs, hydraulics , bearings and machining parts, etc. It with straightening machine and belt polishing machine compose the bright bar making line. CNC system is Siemens while electric parts use Schneider , etc.




Main Technical Parameters—WXC160S

MODEL

WXC160S

RAW
MATERIALS

Diameter Range(mm)

Φ50~Φ160

Raw Material Length(mm)

≥4000

Tensile Strength(Mpa)

≤1100

Surface Hardness

≤HB320

Curvature(mm/m)

≤1.50

Diameter Tolerance

According to GB 702-2004 second group

Roundness(mm)

≤50% of the diameter tolerance

Surface Roughness(Ra)

≤25-50μm

FINISHED
GOODS

Diameter Range

Φ49~Φ155

Unilateral Turning Depth (mm)

0.5~2.50

Diameter Tolerance

≤IT10 (standard tolerance grade)

Surface Roughness(Ra)

≤6.3μm

Roundness(mm)

≤0.05

Feeding Cutting Speed(m/min)

0.5-3 (for continuous chips and high strength and hardness should reduce the cutting speed)

Cutter Head Rotational Speed(rpm)

60~800

Host Machine Motor Power(KW)

160

Auxiliary Machine Motor Power(KW)

15

Host Machine Outline Dimensions
(Length*Width*Height) m

5.5m * 3m * 2.5m

Full Set Machine Outline Dimensions
(Including auxiliary) (Length*Width*Height) m

18m X 3.5m X 3m

Host Machine Weight
(including auxiliary weight) (t)

30 (20)

Total Installed Capacity(KW)

210

Compressed Air Source
(users prepare by themselves)

0.5~0.8MPa、1.8m3/min、more than 0.8 m3 gasholder, two-stage oil-water separator and compressed air freezing drier
