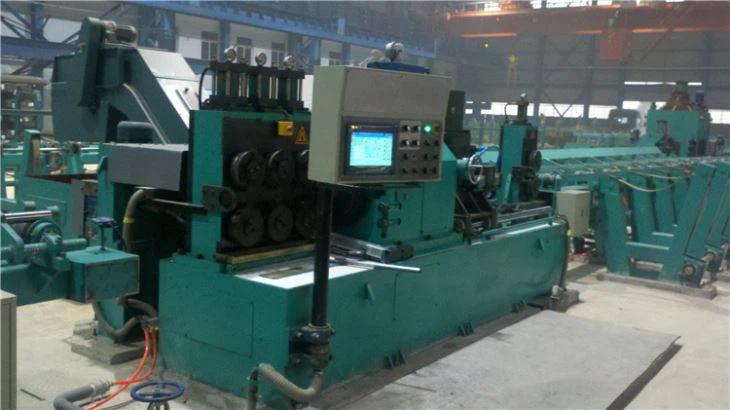

CNC Metal Bar Peeler

Our WXC centerless lathe (peeling machine ) are mainly used for rough and finishing processing long and round metal materials, including bar, tube and wire rod with required surface finish and dimension .

Chat Now

Product Details

CNC metal bar peeler

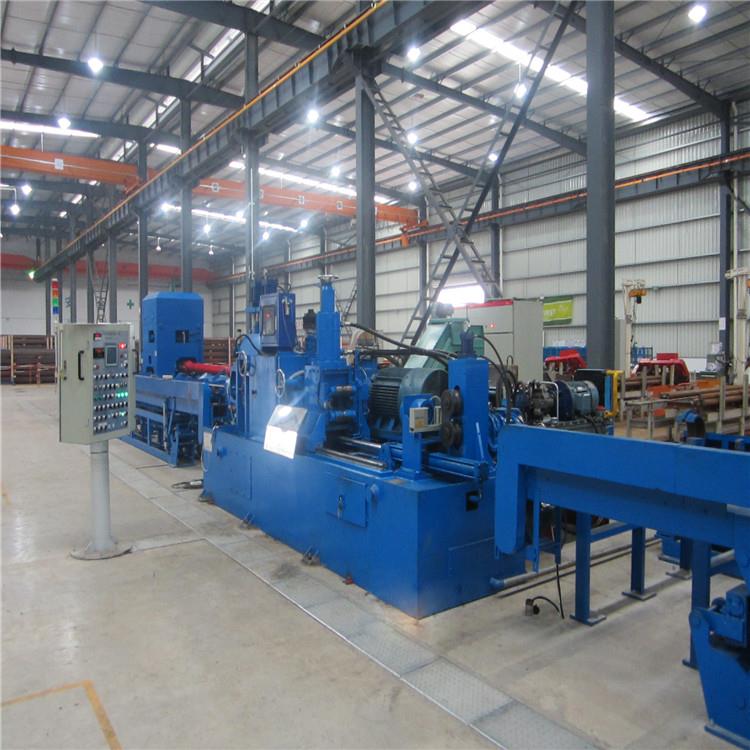

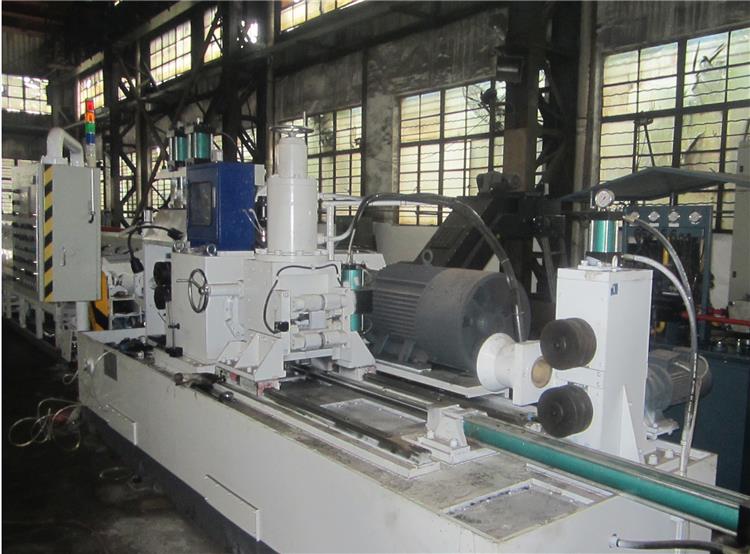

Yantai Haige Machine Tools Co.,Ltd is China professional CNC metal bar peeler manufacturer. Our WXC centerless lathe (peeling machine ) are mainly used for rough and finishing processing long and round metal materials, including bar, tube and wire rod with required surface finish and dimension . With several cutters working together,the efficiency is dozens of times higher than the ordinary lathe. The finished bars can reach diameter tolerance ≤h9, surface roughness Ra ≤3.2μm.




MODEL

WXC130S

Raw material

Diameter Range(mm)

Φ45~Φ130

Raw Material Length(mm)

≥2800

Tensile Strength(Mpa)

≤1100

Surface Hardness

≤HB320

Curvature(mm/m)

≤1.50

Diameter Tolerance

According to GB 702-2004 second group

Roundness(mm)

≤50% of the diameter tolerance

Surface Roughness(Ra)

≤25-50μm

Finished products

Diameter Range

Φ44~Φ129

Unilateral Turning Depth (mm)

1~2.5

Diameter Tolerance

≤h9 (standard tolerance grade)

Surface Roughness(Ra)

≤3.2μm

Curvature(mm/m)

≤1.5

Roundness(mm)

≤0.03

Feeding Cutting Speed(m/min)

0.3--6 (for continuous chips and high strength and hardness should reduce the cutting speed)

Cutter Head Rotational Speed(rpm)

240-670 (Six poles) 360-1000 (Four poles)

Main Machine Motor Power(KW)

110

Auxiliary Machine Motor Power(KW)

11(feeding part)

Main Machine Outline Dimensions
(Length*Width*Height) m

5.3 X 3.5 X 3

Full Set Machine Outline Dimensions
(Including auxiliary) (Length*Width*Height) m

18M X 3.5M X 3M

Main Machine Weight
(including auxiliary weight) (t)

20.5 (29)

Total Installed Capacity(KW)

130

Compressed Air Source
(users prepare by themselves)

0.5~0.8MPa、1.8m3/min、more than 0.8 m3 gasholder, two-stage oil-water
separator and compressed air freezing drier
