Semi Automatic SS Bar Peeler

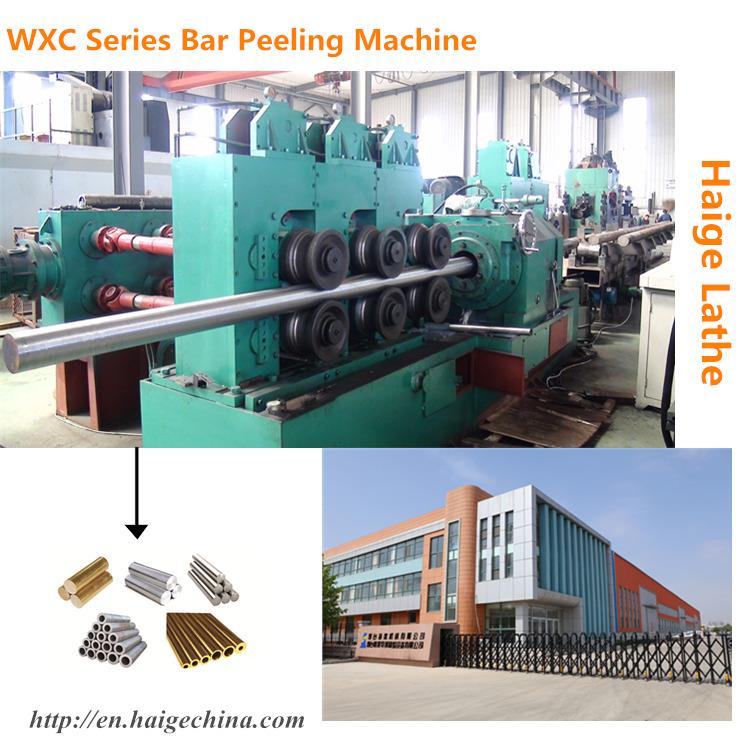

semi automatic ss bar peeler is one of our main products,named stainless steel bar peeler,which is one kind of specialized lathes of rapidly wiping off the defects of bars,such as surface crack,oxide layer and decarburized layer with better precison and surface roughness.

Chat Now

Product Details

semi automatic ss bar peeler

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as ss bar peeler,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.



2.Specific Description:

semi automatic ss bar peeler is one of our main products,named stainless steel bar peeler,which is one kind of specialized lathes of rapidly wiping off the defects of bars,such as surface crack,oxide layer and decarburized layer with better precison and surface roughness.They are independently developed by Yantai Haige Machine Tools Co.,Ltd. are mainly used for rough and finishing processing long and round metal materials,which includes bar,tube and wire rod with required surface finish and dimension.It is superior to the ordinary lathes.It greatly reduces the number of workers and equipment cost.And hot sale to many parts in the world.




Main Technical Parameters:

Model

WXC100CA

material requirement

diameter range (mm)

26<dia<105

material length (mm)

≥2800

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB702-2004 second group

roundness(mm)

≤50%ofdiametertolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

25≤dia≤101

diameter cutting depth(mm)

1.0~4.0

diameter tolerance

≤h10

surface roughness (Ra)

≤6.3μm

feeding speed (m/min)

0.5~8.0

cutting head rotation rate per minute(rpm)

430~1000

main motor(kw)

75/95

total capacity(kw)

95/110

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
