High Precision Alloy Steel Coil Peeling Machine

High precision alloy steel coil peeling machine is one of our main products, the operation of whole set of machine is controlled by 2 set of control system of touch screen and button station. The key part PLC is programmed controlled with multi-point detection mechanism which is highly automated.

Chat Now

Product Details

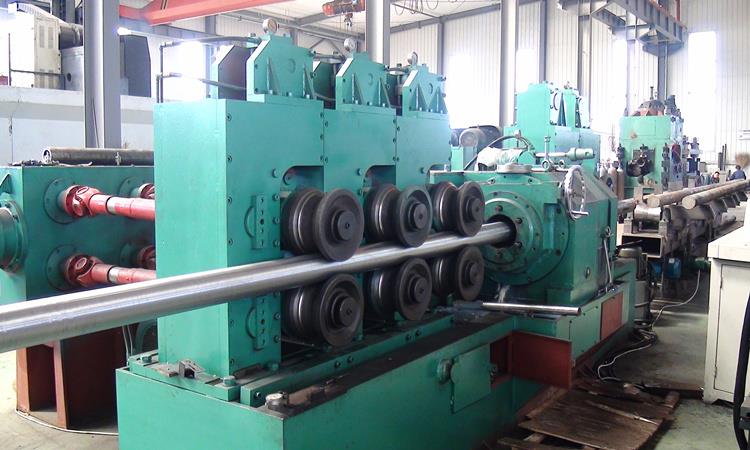

high precision alloy steel coil peeling machine

Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Grinder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience, our machines have been exported to Russia, Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.



High precision alloy steel coil peeling machine is one of our main products, the operation of whole set of machine is controlled by 2 set of control system of touch screen and button station. The key part PLC is programmed controlled with multi-point detection mechanism which is highly automated.

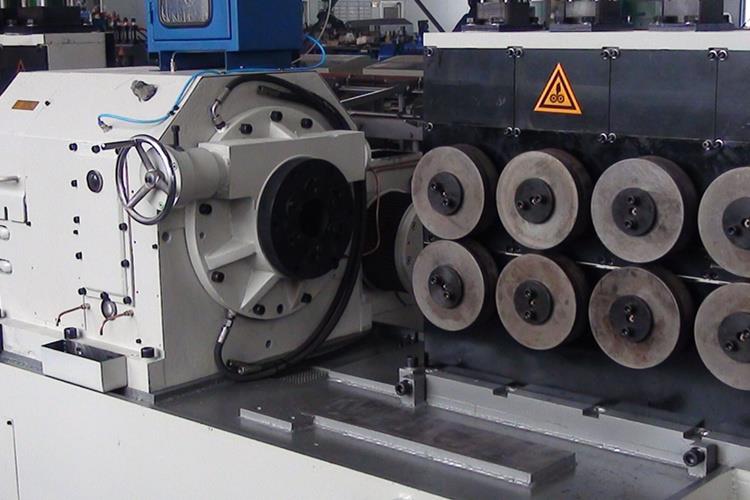

Feeding device and discharging device are designed with automatic aligning structure, which can make adjustment conveniently and automatically when diameter of materials change, assuring concentricity with main spindle.




coil to bar
modelKP25
material requirementsdiameter rangeΦ8~Φ25mm
yield strength≦900N/nm²
surface hardness≦HB320
straightness≦1.5mm/m
roundness≦50%diameter tolerance
surface roughness≦25µm
after peeling parametercutting depth0.5~1.5
diameter rangeΦ7.5~Φ23.5mm
diameter tolerance≦IT10
surface roughness≦6.3µm
roundness≦0.03
speed1.0-8.0m/min
uncoiler motor15kw
uncoiler feeding motor2.2kw
centerless lathe main motor45kw
centerless lathe feeding motor4kw*2
