Semi Automatic Black Coil Peeling Machine

semi automatic black coil peeling machine Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Grinder, Drawing Machine, Shot Blasting Machine, Centerless Grinding...

Chat Now

Product Details

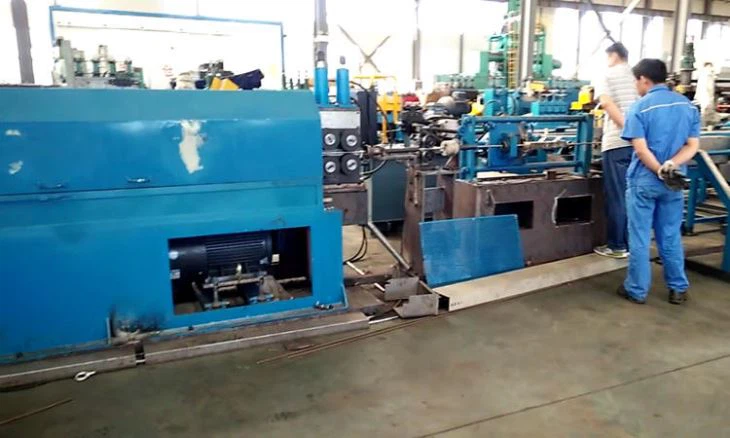

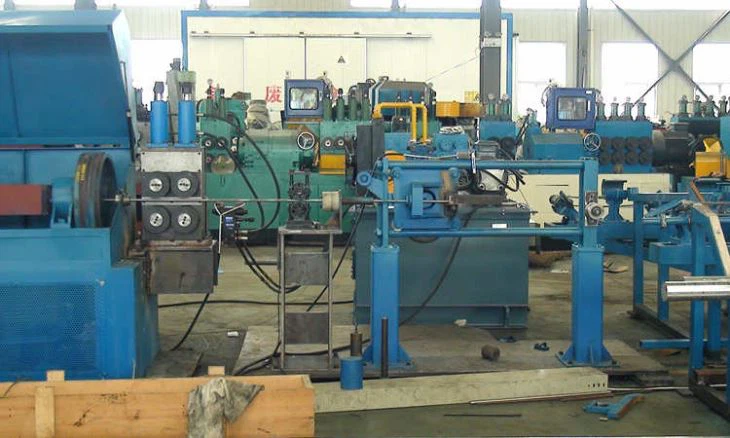

semi automatic black coil peeling machine

Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Grinder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience, our machines have been exported to Russia, Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.

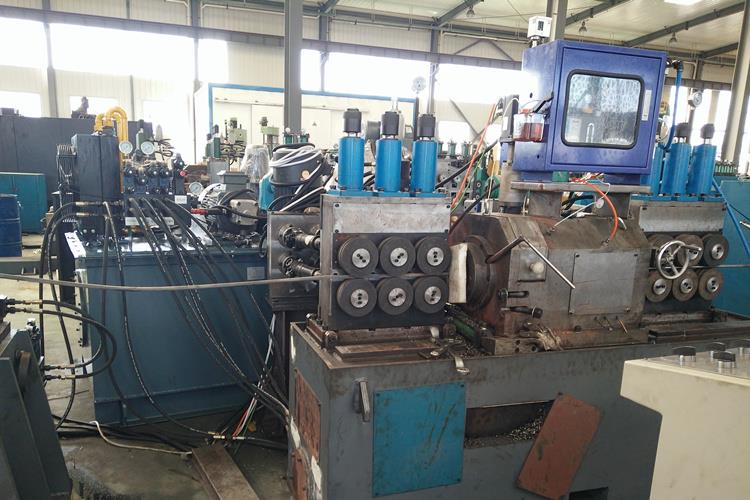

Semi automatic black coil peeling machine is one of our main products, the main shaft gear box is lubricated with oil lubrication, and the main bearing is lubricated by oil and gas.Oil and gas lubricated tail oil should be exported and concentrated in the collection to avoid mixing with the cooling emulsion.

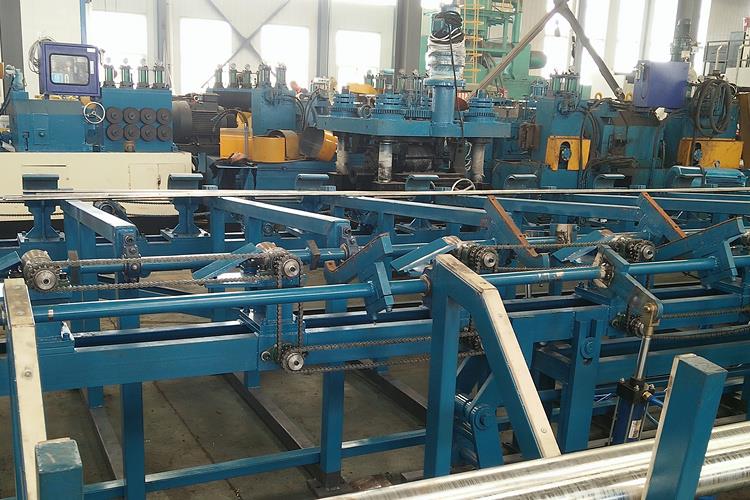

To precisely locate after-peeled materials, trundle and clamp. Meanwhile prevent vibration; transmitting elements go into draw-out device. Transmit coolant, as well as cool turning tools and main spindle, clean chips.




coil to bar
modelKP25
material requirementsdiameter rangeΦ8~Φ25mm
yield strength≦900N/nm²
surface hardness≦HB320
straightness≦1.5mm/m
roundness≦50%diameter tolerance
surface roughness≦25µm
after peeling parametercutting depth0.5~1.5
diameter rangeΦ7.5~Φ23.5mm
diameter tolerance≦IT10
surface roughness≦6.3µm
roundness≦0.03
speed1.0-8.0m/min
uncoiler motor15kw
uncoiler feeding motor2.2kw
centerless lathe main motor45kw
centerless lathe feeding motor4kw*2
