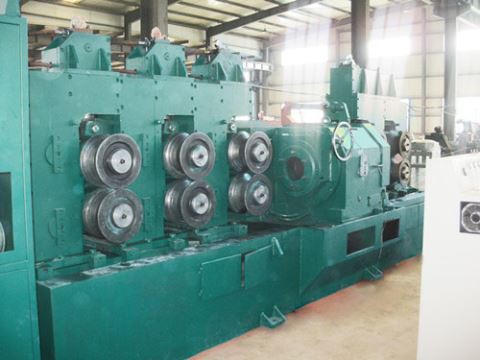

CNC Bright Coil Peeling Machine
CNC bright coil peeling machine is one of our main products, controlled by detection point signal, the carriage car supported by slide-way which is installed on the machine bed will drive the hydraulic pressure clamp to clamp the material synchronous.
CNC bright coil peeling machine
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Grinder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia, Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.
CNC bright coil peeling machine is one of our main products, controlled by detection point signal, the carriage car supported by slide-way which is installed on the machine bed will drive the hydraulic pressure clamp to clamp the material synchronous. And driven by ball screw mechanism, the carriage car will make the synchronous axial movement to finish the rear process of each bar.The synchronization system is controlled by the PLC, with safety limit switch on the rear end for convenience to operate.
|coil to bar|
|material requirements||diameter range||Φ8～Φ25mm|
|after peeling parameter||cutting depth||0.5~1.5|
|uncoiler feeding motor||2.2kw|
|centerless lathe main motor||45kw|
|centerless lathe feeding motor||4kw*2|
