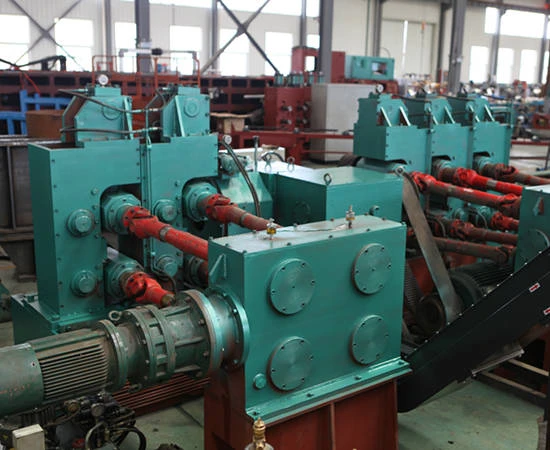

Semi Automatic SS Rod Peeling Machine

Ss rod peeling machine is one of our main products, which is used to wipe off the the surface crack, oxide layer and decarburized layer of the rod. Cutting tool is with long cutting edge which makes processing bright and clean.

Chat Now

Product Details

semi automatic ss rod peeling machine

Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as ss rod peeling machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.


Ss rod peeling machine is one of our main products, which is used to wipe off the the surface crack, oxide layer and decarburized layer of the rod. Cutting tool is with long cutting edge which makes processing bright and clean. Feeding speed is quite high.




model

WXC60C

material requirement

diameter range (mm)

15<dia<63

material length (mm)

≥2200

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

14≤dia≤60

diameter cutting depth(mm)

0.5~2.0

diameter tolerance

≤h10

surface roughness (Ra)

≤6.3μm

feeding speed (m/min)

1.0~8.0

cutting head rotation rate    per minute(rpm)

440~1300

main motor(kw)

45

total capacity(kw)

65

compressed air (prepared by    user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine


Certificates



Customer



Exhibition



Packaging





Hot Tags: semi automatic SS rod peeling machine, manufacturers, high speed, high precision, high accuracy, high quality
