CNC Alloy Steel Tube Peeling Machine

CNC alloy steel tube peeling machine is one of our main products,our CNC type machines are classified into 13 models from WXC30S to WXC700S.These machines are compact,light,reliable and easy for maintenance.

Chat Now

Product Details

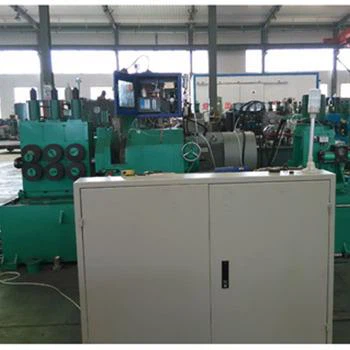

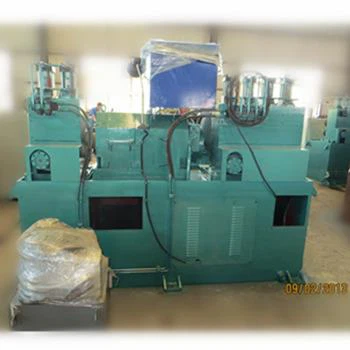

CNC alloy steel tube peeling machine

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as alloy steel tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.



2.Specific Description:

CNC alloy steel tube peeling machine is one of our main products,our CNC type machines are classified into 13 models from WXC30S to WXC700S.These machines are compact,light,reliable and easy for maintenance.Our CNC machine can also be used with some different types of machine together.The automatic production line of bright steel makes flexible combination.There are different options available according to different requirements of the customers.

Option 1:1 peeling machine+1 precision straightening machine

Option2:1 pre-straightening machine+1 peeling machine+1 precision straightening machine(for black bars)

Option 3:2 peeling machine+1 precision straightening machine(fast speed,large production capacity)



Main Technical Parameters:

model

WXC40S

material requirement

diameter range (mm)

11<dia<40

material length (mm)

≥1400

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

10≤dia≤39

diameter cutting depth(mm)

0.5~2.0

diameter tolerance

≤h9

surface roughness (Ra)

≤3.2μm

feeding speed (m/min)

1.0~12.0

cutting head rotation rate per minute(rpm)

900~2500

main motor(kw)

45

total capacity(kw)

65

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
