Semi Automatic Bearing Steel Tube Peeling Machine

semi automatic bearing steel tube peeling machine is one of our main products produced by Yantai Haige Machine Tools Co.,Ltd.Of the machine,every tool holder can be made fine adjustment, and it can also be adjusted to a certain value on the tool holder regulator in advance

Chat Now

Product Details

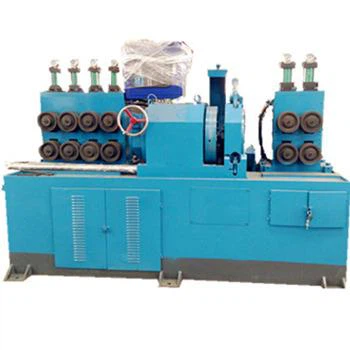

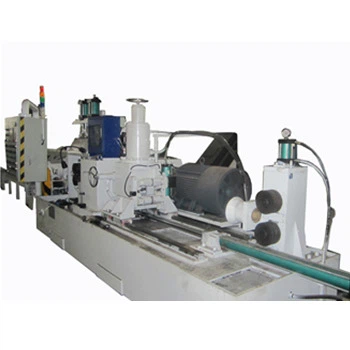

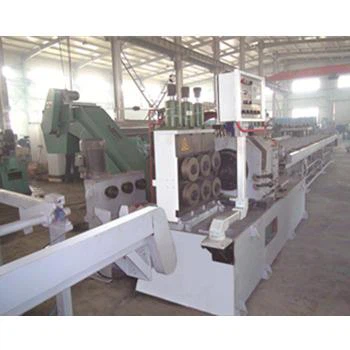

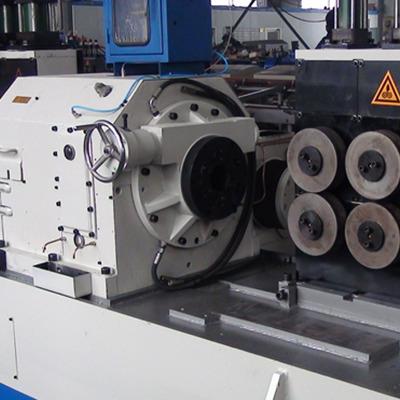

semi automatic bearing steel tube peeling machine

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as bearing steel tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.



2.Specific Description:

semi automatic bearing steel tube peeling machine is one of our main products produced by Yantai Haige Machine Tools Co.,Ltd.Of the machine,every tool holder can be made fine adjustment, and it can also be adjusted to a certain value on the tool holder regulator in advance,for the sake of fast replacement to enhance the working capacity.

The main power supply could be depend on different country’s voltage and frequency.

About the delivery of the machine,we will be in charge of packaging and transmitting the equipment to the user’s seaport.The equipment will be transported totally safety.




Main Technical Parameters:

model

WXC130CA

material requirement

diameter range (mm)

35<dia<135

material length (mm)

≥2800

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

35≤dia≤130

diameter cutting depth(mm)

1.0~5.0

diameter tolerance

≤h10

surface roughness (Ra)

≤6.3μm

feeding speed (m/min)

0.2~4.0

cutting head rotation rate per minute(rpm)

110~660

main motor(kw)

90/110

total capacity(kw)

115/135

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine


Certificates



Customer



Exhibition



Packaging





Hot Tags: semi automatic bearing steel tube peeling machine, manufacturers, high speed, high precision, high accuracy, high quality
