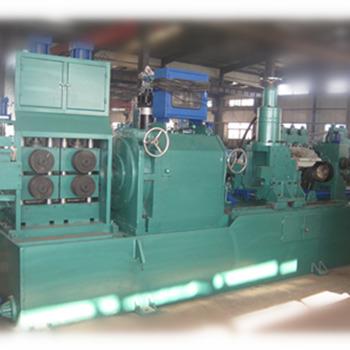

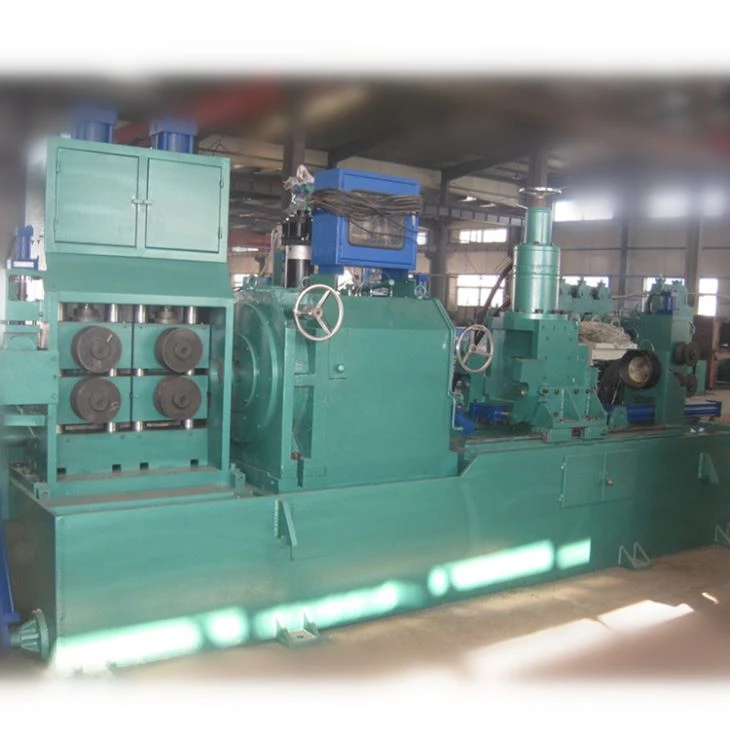

Semi Automatic Carbon Steel Tube Peeling Machine

semi automatic carbon steel tube peeling machine is one of our main products,our company is a professional manufacturer which is mainly engaged in producing those materials.Our Series WXC Whirlwind center-less lathe is hi-tech equipment with independent intellectual property rights.

Chat Now

Product Details

semi automatic carbon steel tube peeling machine

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as carbon steel tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.



2.Specific Description:

semi automatic carbon steel tube peeling machine is one of our main products,our company is a professional manufacturer which is mainly engaged in producing those materials.Our Series WXC Whirlwind center-less lathe is hi-tech equipment with independent intellectual property rights.Its processing speed is medium.The finished products can reach diameter tolerance≤h10 with the medium productivity.


Main Technical Parameters:

model

WXC130C

material requirement

diameter range (mm)

35<dia<130

material length (mm)

≥2800

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

35≤dia≤125

diameter cutting depth(mm)

1.0~5.0

diameter tolerance

≤h10

surface roughness (Ra)

≤6.3μm

feeding speed (m/min)

0.2~3.0

cutting head rotation rate per minute(rpm)

110~660

main motor(kw)

90

total capacity(kw)

115

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
