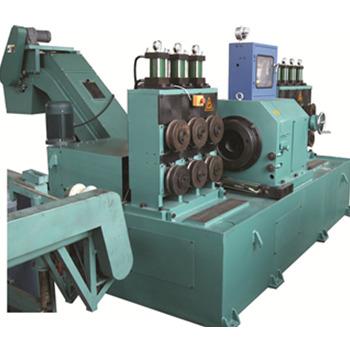

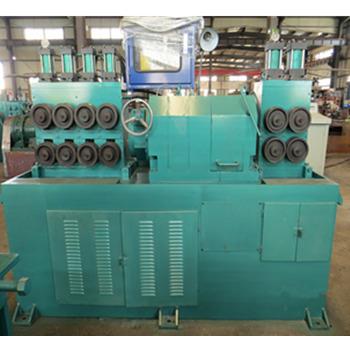

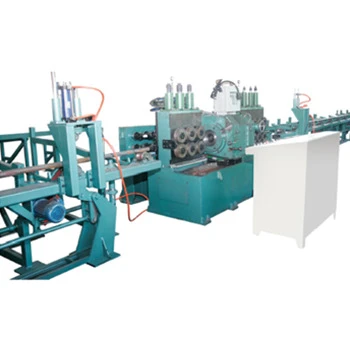

CNC Copper Tube Peeling Machine

CNC copper tube peeling machine is one of our main products,the equipment is used for finishing the steel tubes and bars in order to produce continuously.This kind of machine can be offered with stepless variable speed.The speed can be adjusted smoothly.

Chat Now

Product Details

CNC copper tube peeling machine

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as copper tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.



2.Specific Description:

CNC copper tube peeling machine is one of our main products,the equipment is used for finishing the steel tubes and bars in order to produce continuously.This kind of machine can be offered with stepless variable speed.The speed can be adjusted smoothly.

For the convenience of machine cutters replacement in the cutting head, the front guide can be turn over in a whole to get high automation,high production and high surface quality.



Main Technical Parameters:

Model

WXC80S

material  requirement

diameter  range (mm)

21<dia<83

material  length (mm)

≥2200

yield  strength(Mpa)

≤1100

surface  hardness

≤HB320

straightness  (mm/m)

≤1.5

diameter  tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface  roughness(Ra)

≤25~50μm

finished  product

diameter  range(mm)

20≤dia≤80

diameter  cutting depth(mm)

0.5~3

diameter  tolerance

≤h9

surface  roughness (Ra)

≤3.2μm

feeding  speed (m/min)

1~12

cutting  head rotation rate per minute(rpm)

430~1500

main  motor(kw)

75/90

total  capacity(kw)

95/110

compressed  air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8  m3 up air tank with two stage oil water separator and compressed  air freezing type drying machine
