Semi Automatic Copper Tube Peeling Machine

semi automatic copper tube peeling machine is one of our main products,it is applicable for continuous production process of steel tube materials.Some main parts equipped on this machine all aopted some famous brands.Such as the main motor,belts

Chat Now

Product Details

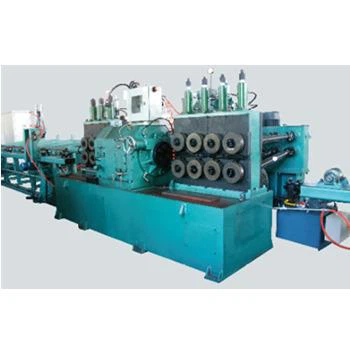

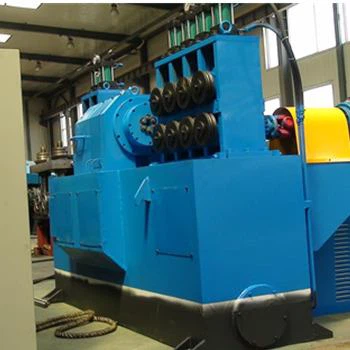

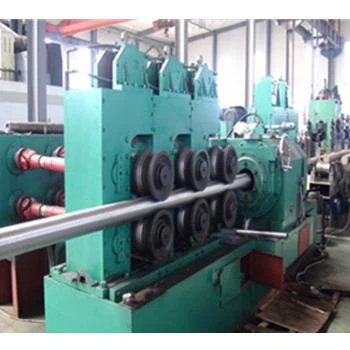

semi automatic copper tube peeling machine

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as copper tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.



2.Specific Description:

semi automatic copper tube peeling machine is one of our main products,it is applicable for continuous production process of steel tube materials.Some main parts equipped on this machine all aopted some famous brands.Such as the main motor,belts,gear reducer,oil&air lubrication system,PLC touch screen,frequency converter,some electrical parts and etc..Customers could purchase with ease.The operation and maintenance of the machine can be trained at the every customer’s factory.


Main Technical Parameters:

model

WXC60C

material requirement

diameter range (mm)

15<dia<63

material length (mm)

≥2200

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

14≤dia≤60

diameter cutting depth(mm)

0.5~2.0

diameter tolerance

≤h10

surface roughness (Ra)

≤6.3μm

feeding speed (m/min)

1.0~8.0

cutting head rotation rate per minute(rpm)

440~1300

main motor(kw)

45

total capacity(kw)

65

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
