CNC Round Tube Peeling Machine

CNC round tube peeling machine is one of our main products,with 15 years of metal finishing devotion of our company,we could provide our distinguished customers a full range of equipment solutions. Inculded,our after-sales service have more advantages.

Chat Now

Product Details

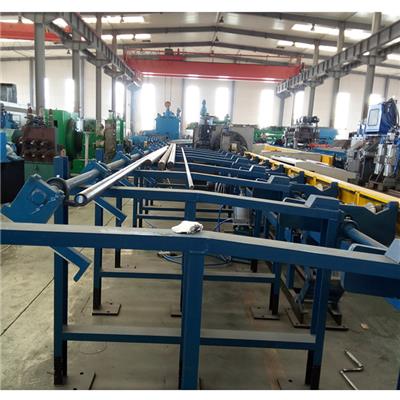

CNC round tube peeling machine

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as round tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.


2.Specific Description:

CNC round tube peeling machine is one of our main products,with 15 years of metal finishing devotion of our company,we could provide our distinguished customers a full range of equipment solutions.

Inculded,our after-sales service have more advantages.

A.Warranty period:1 year except for wearing parts.

B.Immediate response when get informed of machine problem.

C.The machine operator of buyer’s can be trained in our factory for free.

D.We could provide long term free technical support.

E.If necessary,we can dispatch our well-trained and professional engineers to our customers’ factories to help them with the machine installation and commissioning.

F.Customized design is available.OEM&ODM are welcomed.



Main Technical Parameters:

Model

WXC100S

material requirement

diameter range (mm)

26<dia<105

material length (mm)

≥2800

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter to lerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

25≤dia≤100

diameter cutting depth(mm)

1.0~4.0

diameter tolerance

≤h9

surface roughness (Ra)

≤3.2μm

feeding speed (m/min)

0.5~10

cutting head rotation rate per minute(rpm)

430~1200

main motor(kw)

90

total capacity(kw)

120

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
