High Precision Round Tube Peeling Machine

high precision round tube peeling machine is one of our main products,it is one high-level new equipment innovated by us with some patents based on many advanced foreign and domestic patterns of similar machines

Chat Now

Product Details

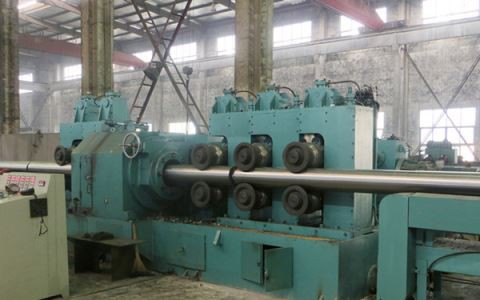

high precision round tube peeling machine

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as round tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.


2.Specific Description:

high precision round tube peeling machine is one of our main products,it is one high-level new equipment innovated by us with some patents based on many advanced foreign and domestic patterns of similar machines.It is able not only to get rid of the imperfection on the tube surface,de-carburized layer,crack etc.,but also to guarantee relatively high accuracy.The finished products could reach diameter tolerance≤h9,surface roughness≤3.2μm.

With several cutters working together,the efficiency is dozens of times higher than the common ones.As well,during the process of machining,all the scraps can be recycled.




Main Technical Parameters:

Model

WXC160S

material requirement

diameter range (mm)

55<dia<165

material length (mm)

≥4000

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

55≤dia≤160

diameter cutting depth(mm)

1.0~5.0

diameter tolerance

≤h9

surface roughness (Ra)

≤3.2μm

feeding speed (m/min)

0.3~5

cutting head rotation rate per minute(rpm)

200~600

main motor(kw)

160

total capacity(kw)

210

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3  up air tank with two stage oil water separator and compressed air freezing  type drying machine
