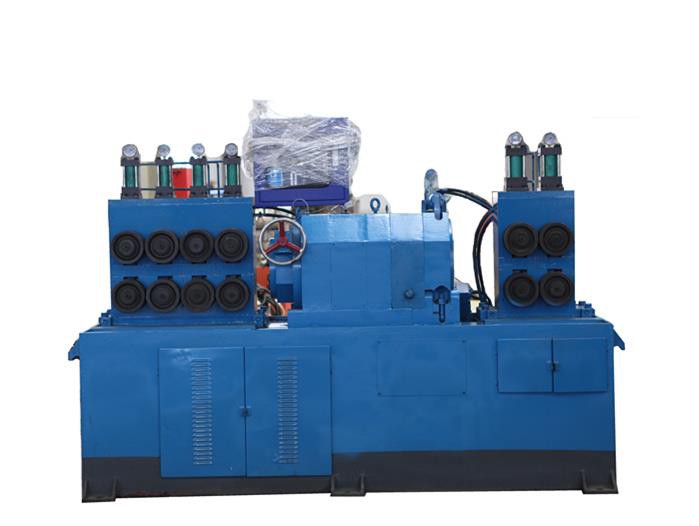

CNC Seamless Steel Tube Peeling Machine

seamless steel tube peeling machine is one of our main products, and the machine can rapidly wipe off stainless steel tubes’ surface crack, oxide layer and decarburized to make steel tubes high precision.

Chat Now

Product Details

CNC seamless steel tube peeling machine

Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such seamless steel tube peeling machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.


seamless steel tube peeling machine is one of our main products, and the machine can rapidly wipe off stainless steel tubes’ surface crack, oxide layer and decarburized to make steel tubes high precision. The operation of whole set of machine is controlled by 2 set of control system of touch screen and button station. The key part PLC is programmed controlled with multi-point detection mechanism which is highly automated.




model

WXC60B

material requirement

diameter range (mm)

15<dia<62

material length (mm)

≥ 2000

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

14≤dia≤60

diameter cutting depth(mm)

0.5~2.0

diameter tolerance

≤h10

surface roughness (Ra)

≤6.3μm

feeding speed (m/min)

1.0~7.0

cutting head rotation rate per minute(rpm)

440~1200

main motor(kw)

45

total capacity(kw)

65

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3  up air tank with two stage oil water separator and compressed air freezing  type drying machine
