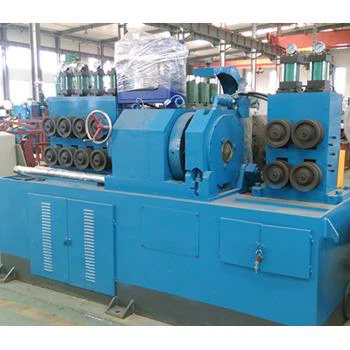

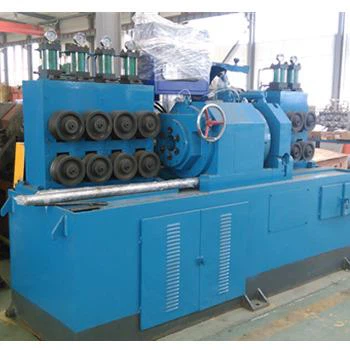

Semi Automatic Spring Steel Tube Peeling Machine

semi automatic spring steel tube peeling machine is one of our main products,it is the high level new equipment designed and produced by our workers.Furthermore,customized design is also welcomed.Our products are diversified.

Chat Now

Product Details

semi automatic spring steel tube peeling machine

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as spring steel tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.



2.Specific Description:

semi automatic spring steel tube peeling machine is one of our main products,it is the high level new equipment designed and produced by our workers.Furthermore,customized design is also welcomed.Our products are  diversified.It could process different kinds of materials with different hardness.The peeling speed could be guaranteed well.The air&oil lubrication system is especially designed to lubricate and cool the spindle bearings during their high speed rotation.It is composed of pump,oil and air distribution block and air source processing unit.



Main Technical Parameters:

model

WXC80C

material requirement

diameter range (mm)

21<dia<83

material length (mm)

≥2200

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

20≤dia≤80

diameter cutting depth(mm)

0.5~3

diameter tolerance

≤h10

surface roughness (Ra)

≤6.3μm

feeding speed (m/min)

1.0~8.0

cutting head rotation rate per minute(rpm)

430~1200

main motor(kw)

55

total capacity(kw)

75

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
