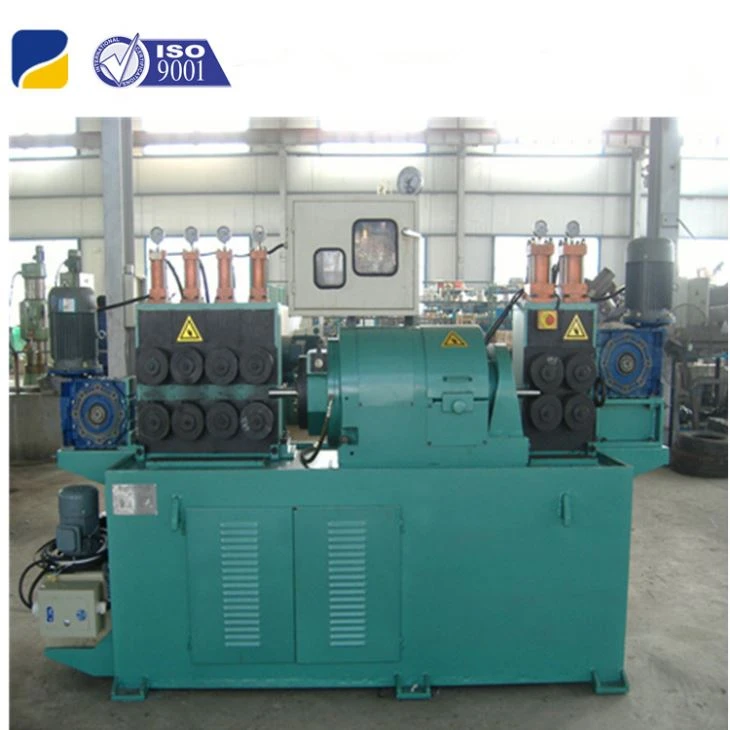

CNC Steel Tube Peeling Machine

CNC steel tube peeling machine is one of our main products,it is mainly applied for processing even not perfect surface of the raw materials.It’s fully digital control with high control accuracy and high reliability.

Chat Now

Product Details

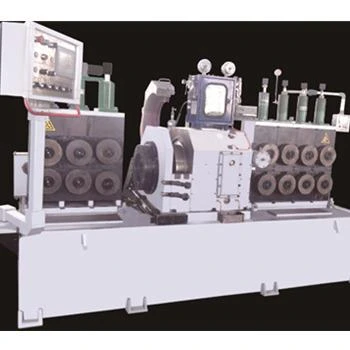

CNC steel tube peeling machine

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as steel tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.



2.Specific Description:

CNC steel tube peeling machine is one of our main products,it is mainly applied for processing even not perfect surface of the raw materials.It’s fully digital control with high control accuracy and high reliability.The voltage and current double closed loop control system can ensure the machine’s stability and reliability of the system.Also,it is equipped with high power factor ,the power and the power factor of the whole set of the equipment can reach the highest operating value.It’s one kind of trustworthy machine,customers could order with satisfaction.



Main Technical Parameters:

 model

WXC160S

material requirement

diameter range (mm)

55<dia<165

material length (mm)

≥4000

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

55≤dia≤160

diameter cutting depth(mm)

1.0~5.0

diameter tolerance

≤h9

surface roughness (Ra)

≤3.2μm

feeding speed (m/min)

0.3~5

cutting head rotation rate per minute(rpm)

200~600

main motor(kw)

160

total capacity(kw)

210

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
