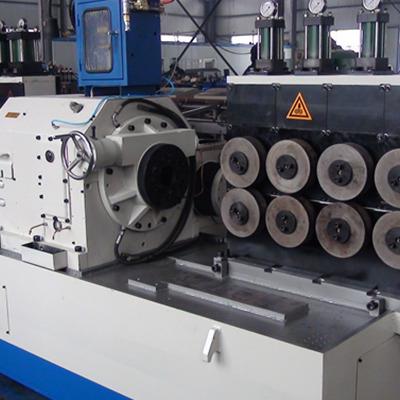

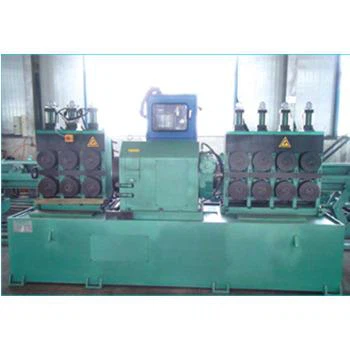

Semi Automatic Titanium Tube Peeling Machine

semi automatic titanium tube peeling machine is one of our main products,which is specially designed for the tubes with high requirements for surface roughness.The machine is of strong practicability,stable process,high speed,high efficiency and good surface quality.

Chat Now

Product Details

semi automatic titanium tube peeling machine

1.General Description:

Yantai Haige Machine Tools Co.,Ltd. was built in 1999,which specializes in producing steel finishing equipment,such as titanium tube peeling machine,Series JY Bar Straightening Machine,Abrasive Belt Ginder,Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.



2.Specific Description:

semi automatic titanium tube peeling machine is one of our main products,which is specially designed for the tubes with high requirements for surface roughness.The machine is of strong practicability,stable process,high speed,high efficiency and good surface quality.

With the ability of designing,developing,processing and manufacturing,our company  undertake planning,designing and manufacturing tasks of metal bars and tubes.We are capable of helping users to realize digitization,automatic control and management of production and to basically improve the user's production efficiency and product quality.



Main Technical Parameters:

Model

WXC80C

material requirement

diameter range (mm)

21<dia<83

material length (mm)

≥2200

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

20≤dia≤80

diameter cutting depth(mm)

0.5~3

diameter tolerance

≤h10

surface roughness (Ra)

≤6.3μm

feeding speed (m/min)

1.0~8.0

cutting head rotation rate per minute(rpm)

430~1200

main motor(kw)

55

total capacity(kw)

75

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
