CNC Brass Wire Peeler

brass wire peeler is one of our main products,The collecting groove of unloading rack is designed with soft contacting surface to prevent the bar surface scratching during bundling process. The material is then carried away by crane .

Chat Now

Product Details

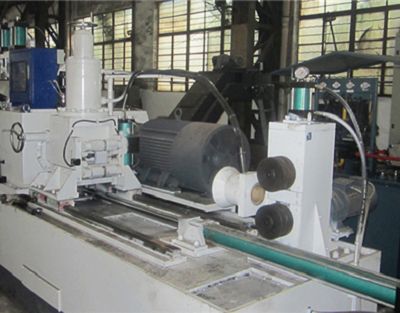

CNC brass wire peeler

Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as brass wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.



brass wire peeler is one of our main products,The collecting groove of unloading rack is designed with soft contacting surface to prevent the bar surface scratching during bundling process. The material is then carried away by crane .(bar with large diameter can be carried one piece each time)



SpecificationWXC500C
material requirementdiameter range (mm)320<dia<510
material length (mm)≥4500
yield strength(Mpa)≤1100
surface hardness≤HB320
straightness (mm/m)≤1.5
diameter toleranceaccording to GB 702-2004 second group
roundness(mm)≤50% of diameter tolerance
surface roughness(Ra)≤25~50μm
finished productdiameter range(mm)315≤dia≤500
diameter cutting depth(mm)1.0~10.0
diameter tolerance≤h10
surface roughness (Ra)≤6.3μm
feeding speed (m/min)0.05~1.0
cutting head rotation rate per minute(rpm)20~160
main motor(kw)200
total capacity(kw)290
compressed air (prepared by user)0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
