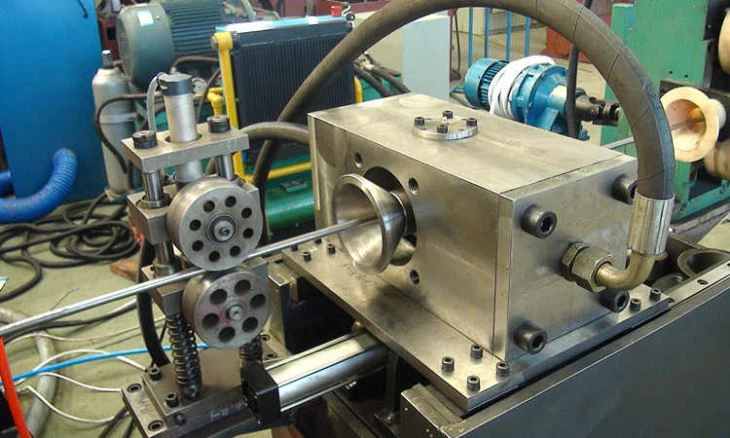

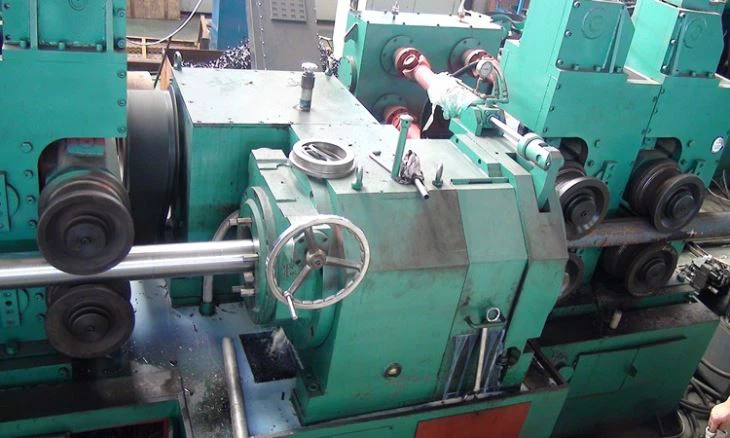

Semi Automatic Carbon Steel Wire Peeler
Semi automatic carbon steel wire peeler is one of our main products, the loading rack is structured welding piece. Elastic protective pad is installed at the upper part of the pre bearing device to avoid damage.
semi automatic carbon steel wire peeler
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Grinder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia, Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.
Semi automatic carbon steel wire peeler is one of our main products, the loading rack is structured welding piece. Elastic protective pad is installed at the upper part of the pre bearing device to avoid damage. One end of the device is an articulated mechanism, and the other end of the device is supported by an oil cylinder. Steel rail is designed on both ends and chain delivering device is on top to deliver the material. Racks that can rise and move are designed on the side of roller table, which are controlled by connecting rod system. Material is delivered by chain system to roller table.
|material requirement||diameter range (mm)||6.5＜dia＜31|
|material length (mm)||≥1400|
|diameter tolerance||according to GB 702-2004 second group|
|roundness(mm)||≤50% of diameter tolerance|
|finished product||diameter range(mm)||6≤dia≤30|
|diameter cutting depth(mm)||0.5~1.0|
|surface roughness (Ra)||≤6.3μm|
|feeding speed (m/min)||1.0~8.0|
|cutting head rotation rate per minute(rpm)||900~2000|
|compressed air (prepared by user)||0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine|
