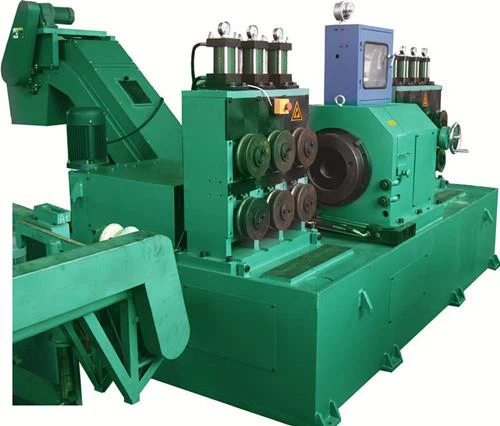

CNC Copper Wire Peeler

copper wire peeler is one of our main products, Under the control of signal from detection point, the bar will be clamped tightly by the hydraulic clamp driven synchronously by the car which is supported on Linear guide rail.

Chat Now

Product Details

CNC copper wire peeler

Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as copper wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.



copper wire peeler is one of our main products, Under the control of signal from detection point, the bar will be clamped tightly by the hydraulic clamp driven synchronously by the car which is supported on Linear guide rail. It will make synchronous axial movement with the extracting car driven by ball screw powered by driving motor to finish the process of bar end peeling. The synchronization system provides the signal by the wheel encoder and controlled by PLC. There is limit switch installed in the end for the operation convenience. Pneumatic anti shock compression wheel device is installed behind the clamping vehicle. The car is self-centered to avoid the vibration of front end of bar material.



SpecificationWXC500C
material requirementdiameter range (mm)320<dia<510
material length (mm)≥4500
yield strength(Mpa)≤1100
surface hardness≤HB320
straightness (mm/m)≤1.5
diameter toleranceaccording to GB 702-2004 second group
roundness(mm)≤50% of diameter tolerance
surface roughness(Ra)≤25~50μm
finished productdiameter range(mm)315≤dia≤500
diameter cutting depth(mm)1.0~10.0
diameter tolerance≤h10
surface roughness (Ra)≤6.3μm
feeding speed (m/min)0.05~1.0
cutting head rotation rate per minute(rpm)20~160
main motor(kw)200
total capacity(kw)290
compressed air (prepared by user)0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
