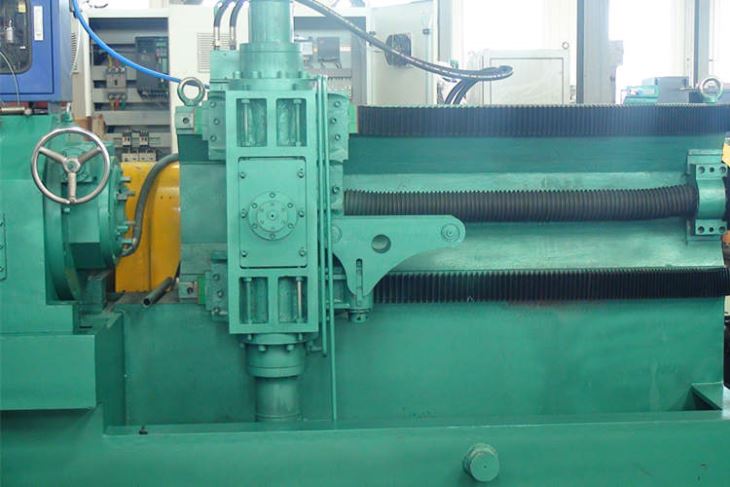

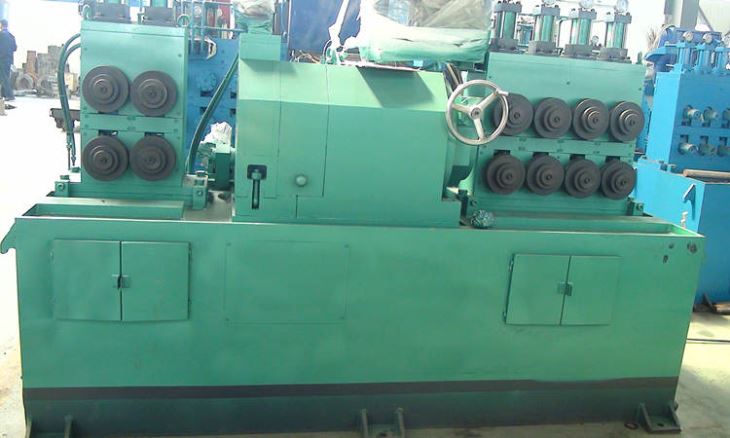

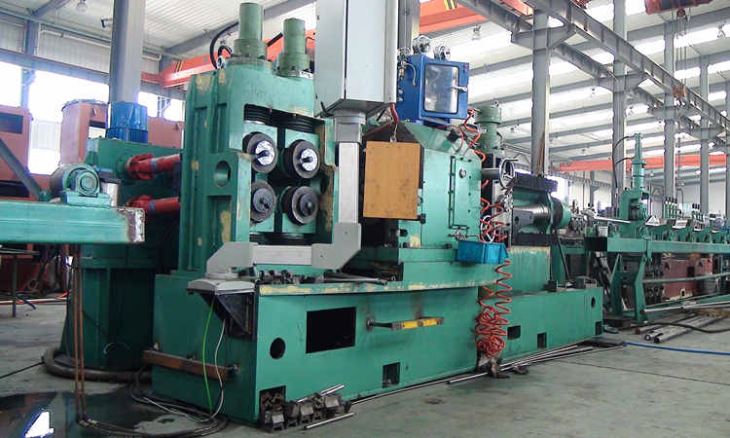

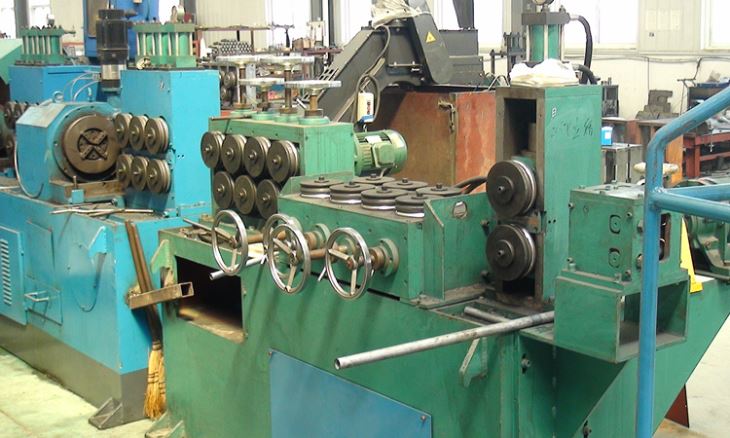

High Precision Spring Steel Wire Peeler

High precision spring steel wire peeler peeler is one of our main products, The oil and gas lubrication system is especially designed to provide the effective lubrication for the high-speed rotating components

Chat Now

Product Details

high precision spring steel wire peeler

Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Grinder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience, our machines have been exported to Russia, Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.


High precision spring steel wire peeler peeler is one of our main products, The oil and gas lubrication system is especially designed to provide the effective lubrication for the high-speed rotating components, and is a reliable and economic method of lubricating for the high-speed spinning bearing. The lubricating oil has to be Great-Wall brand(or better brand with higher quality) mechanical oil or anti-wear hydraulic oil. Use No.46 oil in summer and No.32 in winter. Used oil is forbidden in the oil and gas lubrication system.




modelWXC80S
material requirementdiameter range (mm)21<dia<83
material length (mm)≥2200
yield strength(Mpa)≤1100
surface hardness≤HB320
straightness (mm/m)≤1.5
diameter toleranceaccording to GB 702-2004 second group
roundness(mm)≤50% of diameter tolerance
surface roughness(Ra)≤25~50μm
finished productdiameter range(mm)20≤dia≤80
diameter cutting depth(mm)0.5~3
diameter tolerance≤h9
surface roughness (Ra)≤3.2μm
feeding speed (m/min)1~12
cutting head rotation rate per minute(rpm)430~1500
main motor(kw)75/90
total capacity(kw)95/110
compressed air (prepared by user)0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
