High Precision SS Wire Peeler

High precision ss wire peeler is one of our main products, support cutter head, middle-rear guide device and rotatee, completing cutting at high speed according to a predetermined cutting speed and diameter requirement.

Chat Now

Product Details

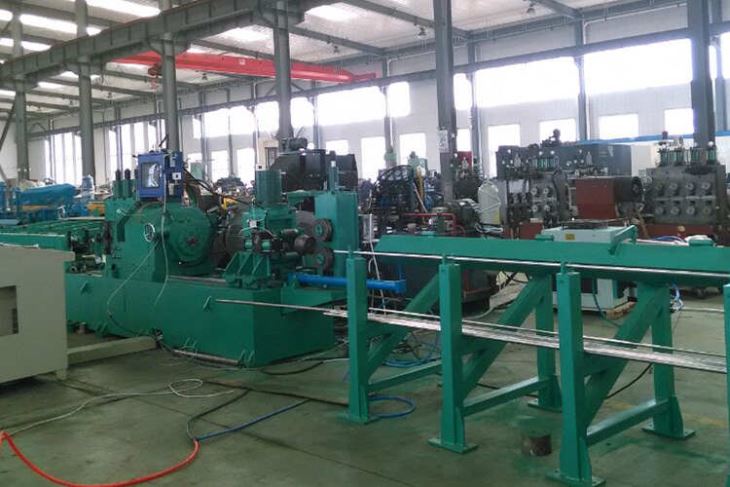

high precision ss wire peeler

Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Grinder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience, our machines have been exported to Russia, Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.



High precision ss wire peeler is one of our main products, support cutter head, middle-rear guide device and rotatee, completing cutting at high speed according to a predetermined cutting speed and diameter requirement.

Main spindle seat is a structural element and it is a hollow main spindle. Cutter head is fixed on main spindle seat by main spindle and bearing. 6 cutter bars are installed averagely on top. On each cutter bar, there installed three specially used cutting blade. Driven by feed servo motor, via transmission chain, 6 cutting tools diametrically adjust tool setting device with controlling cone cover. They can achieve diametrical compensation of dimensions with no need of stopping machine.




modelWXC30S
material requirementdiameter range (mm)6.5<dia<31
material length (mm)≥1400
yield strength(Mpa)≤1100
surface hardness≤HB320
straightness (mm/m)≤1.5
diameter toleranceaccording to GB 702-2004 second group
roundness(mm)≤50% of diameter tolerance
surface roughness(Ra)≤25~50μm
finished productdiameter range(mm)6≤dia≤30
diameter cutting depth(mm)0.5~1.0
diameter tolerance≤h9
surface roughness (Ra)≤3.2μm
feeding speed (m/min)1.0~10.0
cutting head rotation rate per minute(rpm)900~2500
main motor(kw)45
total capacity(kw)65
compressed air (prepared by user)0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
