High Precision Alloy Steel Wire Peeling Machine

alloy steel wire peeling machine is one of our main products,The spindle driven by the main drive through the synchronous belt enable the cutter head which is equipped with four adjustable cutters to produce the precision and high speed rotation movement.

Chat Now

Product Details

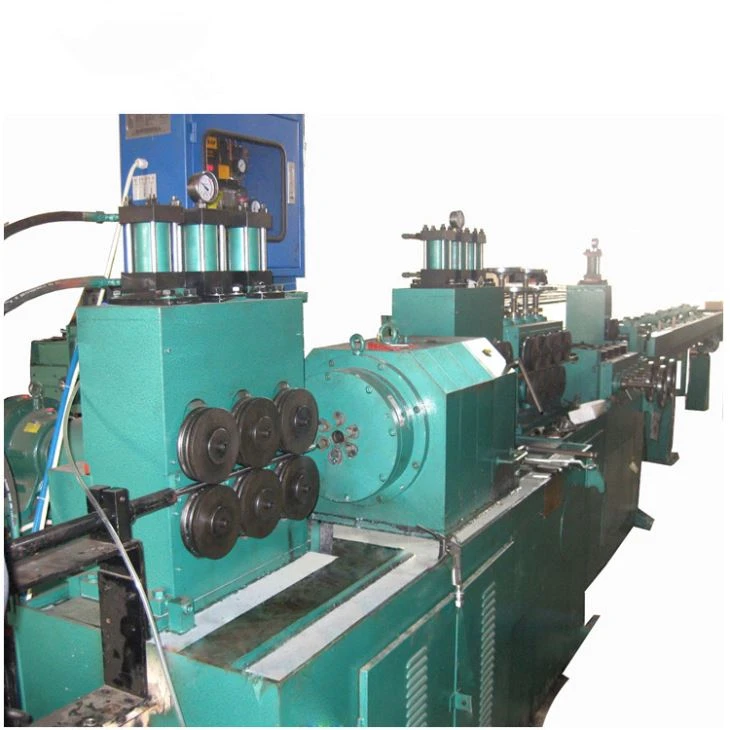

high precision alloy steel wire peeling machine

Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as alloy steel wire peeling machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.

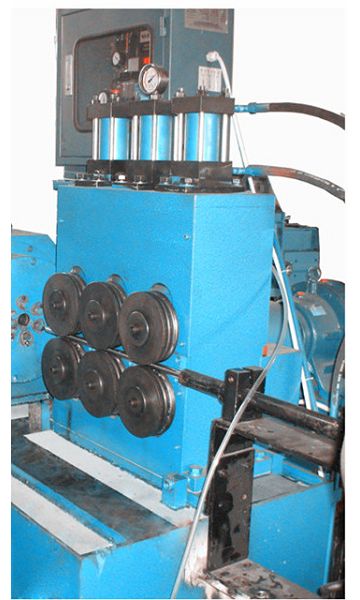

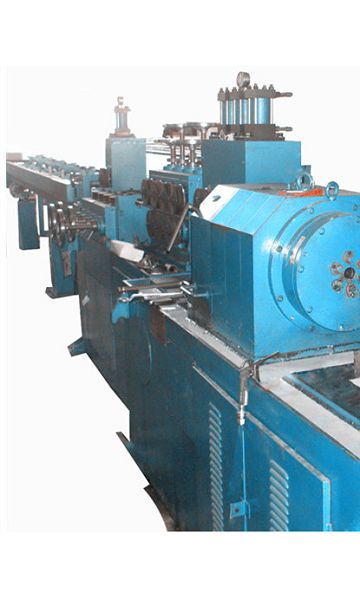

alloy steel wire peeling machine is one of our main products,The spindle driven by the main drive through the synchronous belt enable the cutter head which is equipped with four adjustable cutters to produce the precision and high speed rotation movement. Bar is delivered in through the front feeding clamping device which gives the bar the linear forwarding motion. Front guide makes the central location to the bar, and after that, the cutting head begins peeling process. After  peeling, the bar enters to the middle and rear guide part to experiences another central location. The extracting components deliver the after-peeling bar to unloading rollers, and the high speed peeling process is finished towards the bar material.



model

WXC40S

material requirement

diameter range (mm)

11<dia<40

material length (mm)

≥1400

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

10≤dia≤39

diameter cutting depth(mm)

0.5~2.0

diameter tolerance

≤h9

surface roughness (Ra)

≤3.2μm

feeding speed (m/min)

1.0~12.0

cutting head rotation rate per minute(rpm)

900~2500

main motor(kw)

45

total capacity(kw)

65

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
