CNC Magnesium Wire Peeling Machine

magnesium wire peeling machine is one of our main products,WXC series of centerless lathe is high-efficient specialized lathe to make a rough or fine machining to the surface of bar material such as slender shaft and other bars.

Chat Now

Product Details

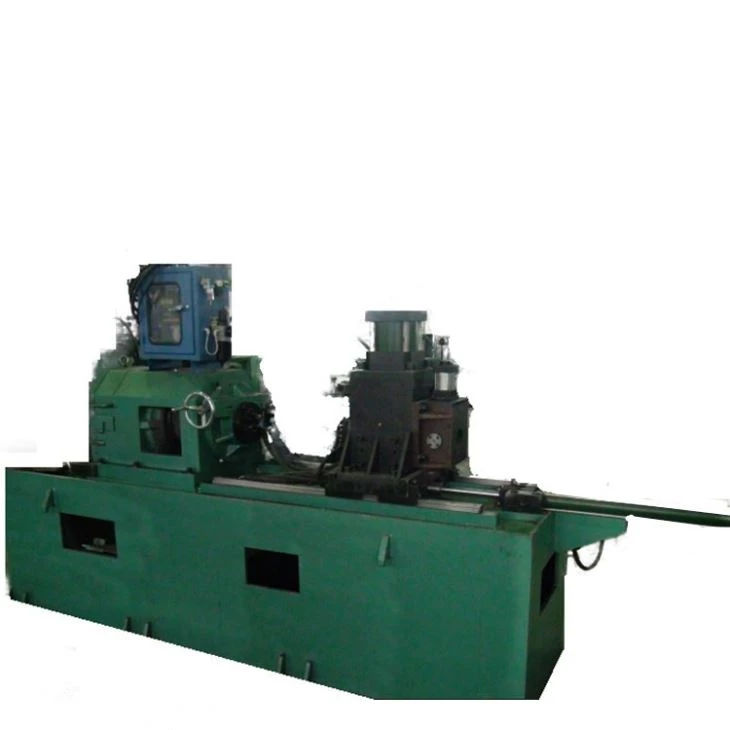

CNC magnesium wire peeling machine

Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as magnesium wire peeling machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.



magnesium wire peeling machine is one of our main products,WXC series of centerless lathe is high-efficient specialized lathe to make a rough or fine machining to the surface of bar material such as slender shaft and other bars. It is able to not only get rid of the imperfection on the bar surface , de-carburized layer, crack etc, but also to guarantee relatively high accuracy. It is especially suitable to process exta long bar and bar with large machining allowance.




model

WXC350S

material requirement

diameter range (mm)

150<dia<360

material length (mm)

≥4500

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤25~50μm

finished product

diameter range(mm)

150≤dia≤350

diameter cutting depth(mm)

1.0~10.0

diameter tolerance

≤h9

surface roughness (Ra)

≤3.2μm

feeding speed (m/min)

0.2~2.0

cutting head rotation rate per minute(rpm)

36~288

main motor(kw)

200/250

total capacity(kw)

265/315

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
