High Precision SS Wire Peeling Machine
ss wire peeling machine is one of our main products, Our product is suitable for processing all kinds of metal materials, such as steel tube core bar, titanium alloy, stainless steel, bearing steel, spring steel, alloy tool steel
Product Details

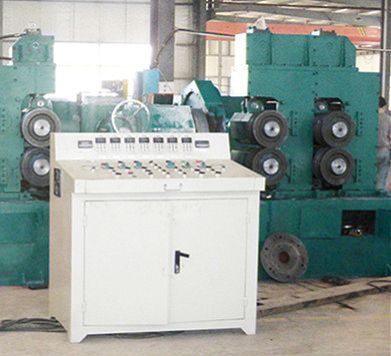

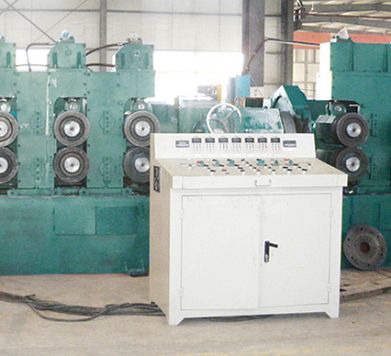

high precision ss wire peeling machine
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as ss wire peeling machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.
ss wire peeling machine is one of our main products, Our product is suitable for processing all kinds of metal materials, such as steel tube core bar, titanium alloy, stainless steel, bearing steel, spring steel, alloy tool steel, carbon tool steel, high-speed tool steel, quality carbon steel, alloy structural steel, non hardening and tempering steel, free-cutting steel, valve steel, gear steel, mold steel and all kinds of nonferrous metal, pipe etc.
model | WXC160C | |
material requirement | diameter range (mm) | 55<dia<165 |
material length (mm) | ≥3500 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25~50μm | |
finished product | diameter range(mm) | 55≤dia≤160 |
diameter cutting depth(mm) | 1.0~5.0 | |
diameter tolerance | ≤h10 | |
surface roughness (Ra) | ≤6.3μm | |
feeding speed (m/min) | 0.2~3.0 | |
cutting head rotation rate per minute(rpm) | 110~440 | |
main motor(kw) | 90/110 | |
total capacity(kw) | 120/140 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine |
