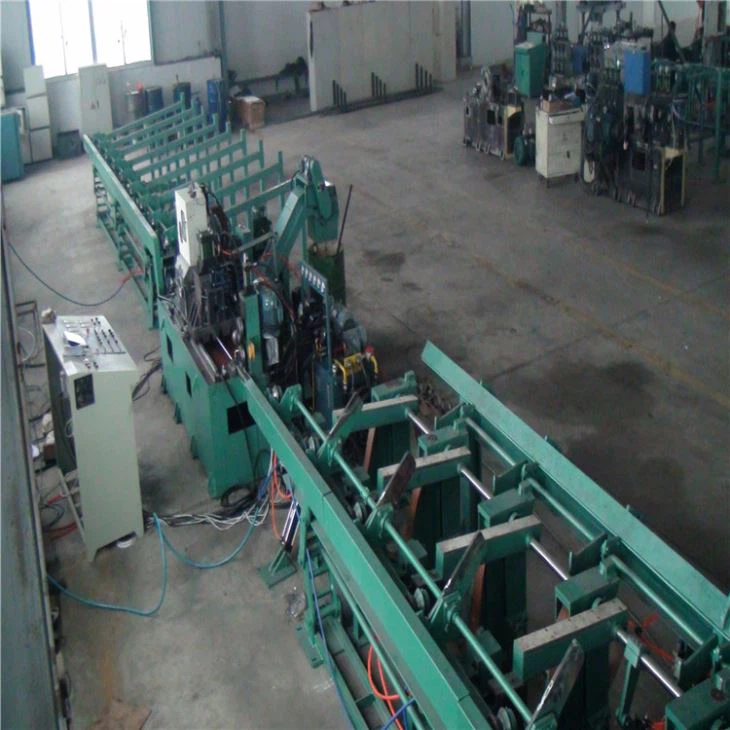

high precision steel bar peeler
Yantai Haige Machine Tools Co.,Ltd is China professional high precision steel bar peeler producer , located in Yantai City , Shandong Province , only takes 1-1.5 hours from Beijing or Shanghai. Convenient traffic absorbs many foreign clients . Our steel bar peeler can process φ5-φ500 Steel wire, tube and bar. To meet clients requirements, we have R&D department for high level machine technique. Our WXC series steel bar peeler can work our JY series straightener to turn the black bar to bright bar with high straightness.
MODEL | WXC130S | |
Raw material | Diameter Range(mm) | Φ45~Φ130 |
Raw Material Length(mm) | ≥2800 | |
Tensile Strength(Mpa) | ≤1100 | |
Surface Hardness | ≤HB320 | |
Curvature(mm/m) | ≤1.50 | |
Diameter Tolerance | According to GB 702-2004 second group | |
Roundness(mm) | ≤50% of the diameter tolerance | |
Surface Roughness(Ra) | ≤25-50μm | |
Finished products | Diameter Range | Φ44~Φ129 |
Unilateral Turning Depth (mm） | 1~2.5 | |
Diameter Tolerance | ≤h9 （standard tolerance grade） | |
Surface Roughness(Ra) | ≤3.2μm | |
Curvature(mm/m) | ≤1.5 | |
Roundness(mm) | ≤0.03 | |
Feeding Cutting Speed（m/min） | 0.3--6 (for continuous chips and high strength and hardness should reduce the cutting speed) | |
Cutter Head Rotational Speed(rpm) | 240-670 (Six poles) 360-1000 (Four poles) | |
Main Machine Motor Power(KW) | 110 | |
Auxiliary Machine Motor Power(KW) | 11（feeding part） | |
Main Machine Outline Dimensions | 5.3 X 3.5 X 3 | |
Full Set Machine Outline Dimensions | 18M X 3.5M X 3M | |
Main Machine Weight | 20.5 (29) | |
Total Installed Capacity(KW) | 130 | |
Compressed Air Source | 0.5~0.8MPa、1.8m3/min、more than 0.8 m3 gasholder, two-stage oil-water | |
