CNC brass bar peeling machine
Yantai Haige Machine Tools Co., Ltd. was built in 1999, which specializes in producing steel finishing equipment, such as CNC brass bar peeling machine, series JY Bar Straightening Machine, Abrasive Belt Grinder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We are also engaged in Continuous Hard Chrome Plating equipment and heat treatment equipment.
Based on more than 10 years experience in manufactur and design, our machines have been exported to Russia,Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions. Our products and services have got more extensive customer recognition.
CNC brass bar peeling machine is one of main products of Yantai Haige Machine Tools Co., Ltd.
The main technical features of WXC255S as follows:
1. It can process diameter size from 100 to 250mm
2. Feeding speed 0.2-2.5 m/min
3. Tolerance of finished goods h9
4. Surface roughness Ra3.2 micron

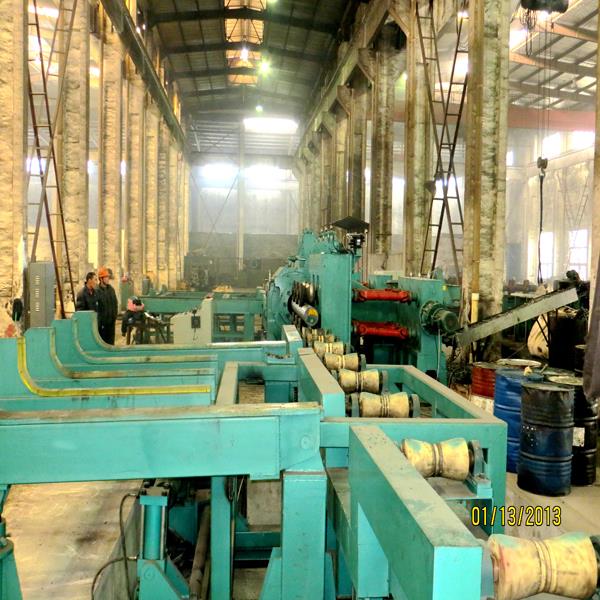

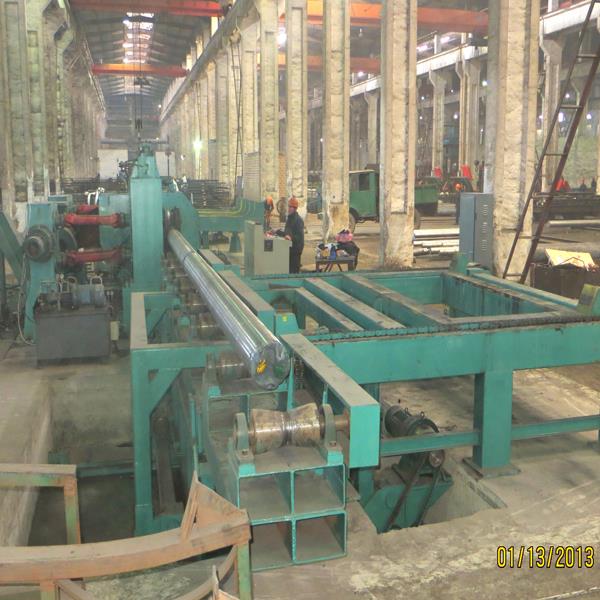

The machine is equipped with automatic loading and unloading mechanism. Automatically input and output and automatically loading and unloading. So it saves labor greatly and improves production capacity.
More pictures and technical parameters, please keep looking down.
| Specification | WXC255S | |
| material requirement | diameter range (mm) | 100＜dia＜255 |
| material length (mm) | ≥4000 | |
| yield strength(Mpa) | ≤1100 | |
| surface hardness | ≤HB320 | |
| straightness (mm/m) | ≤1.5 | |
| diameter tolerance | according to GB 702-2004 second group | |
| roundness(mm) | ≤50% of diameter tolerance | |
| surface roughness(Ra) | ≤25～50μm | |
| finished product | diameter range(mm) | 100≤dia≤250 |
| diameter cutting depth(mm) | 1.0~5.0 | |
| diameter tolerance | ≤h9 | |
| surface roughness (Ra) | ≤3.2μm | |
| feeding speed (m/min) | 0.2~2.5 | |
| cutting head rotation rate per minute(rpm) | 70~400 | |
| main motor(kw） | 160/200 | |
| total capacity（kw） | 210/255 | |
| compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
