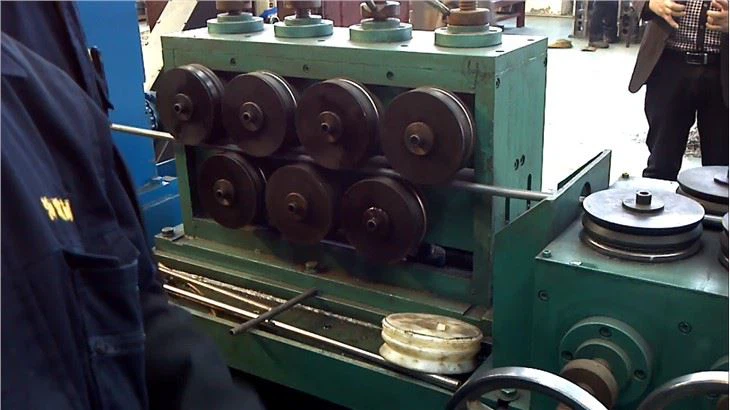

Coil To Bar Peeling 15-30mm Straightening Peeling Cutting And Polishing Line
Coil To Bar Peeling 15-30mm Straightening Peeling Cutting And Polishing Line

Coil To Bar Peeling 15-30mm Straightening Peeling Cutting And Polishing Line

Quick Details Place of Origin: Shandong, China Brand Name: haige Condition: New Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: Hot Product 2019 Warranty of core components: 1 Year Core Components: Motor Power (kW): 7.5 Weight (KG): 0 Key Selling Points: Easy to Operate Warranty: 1 Year, 12months After-sales Service Provided: Online support, Video technical support After Warranty Service: Video technical support, Online support Local Service Location: None Applicable Industries: Manufacturing Plant Showroom Location: None After sales service: engineers are available to supervise on site Color: customized applications: automobile sector Standard: ISO9001 Pesonnel training: provided Product name: Vibratory Polishing Machine Function: Metal Surface Grinding Polishing Material: High Wear Resistant Material Application: Polishing
Send Inquiry
Product Description
Description:
Quality: Our company regards quality as life. We have already passed ISO9001 certification, and strictly implement the ISO9001 international quality management system. We keep improving quality in order to let customers buy with comfort and use with satisfaction. Our company can also make specified equipment according to customers’ requirement. Our service: 1. Free quality guarantee period for 12 months, except for wearing parts.  2. Free provide long-term technical support  3. Free train buyer’s operator in seller’s factory  4. Fast response service within 24 hours  5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs. Packaging and shipping we have much experience in exporting transportation packaging. Taking multi protection measures: The first layer wrapping with foam film and stretch film for the special components, in order to avoid moisture. Second layer inside of plywood box, adopting small square plywood block and strapping belt to fix. Third layer the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut. Fourth layer in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.

Specification
coil to bar

model
KP25
material requirements
diameter range
Φ8~Φ25mm
yield strength
≦900N/nm²
surface hardness
≦HB320
straightness
≦1.5mm/m
roundness
≦50%diameter tolerance
surface roughness
≦25µm
after peeling parameter
cutting depth
0.5~1.5
diameter range
Φ7.5~Φ23.5mm
diameter tolerance
≦IT10
surface roughness
≦6.3µm
roundness
≦0.03
speed
1.0-8.0m/min
uncoiler motor
15kw
uncoiler feeding motor
2.2kw
centerless lathe main motor
45kw
centerless lathe feeding motor
4kw*2
Product Display
