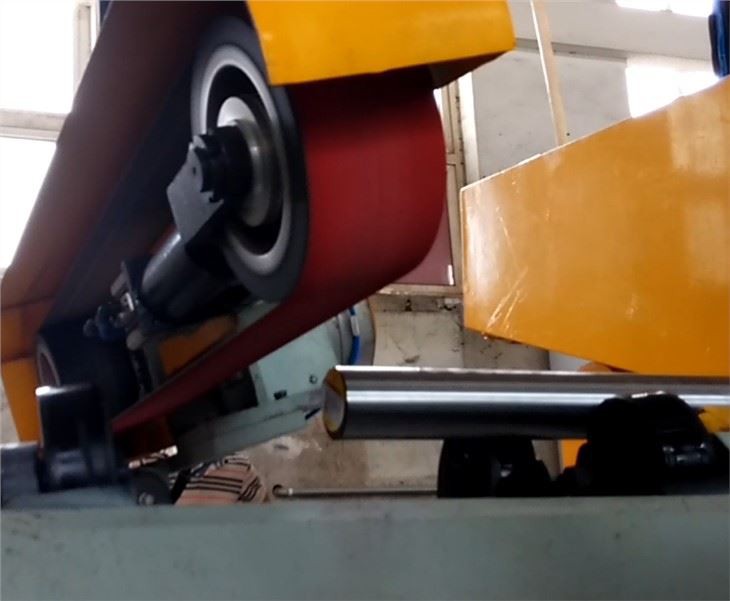

Customized Low Price High Quality Flap Wheel Belt Polishing Machine
Customized Low Price High Quality Flap Wheel Belt Polishing Machine

Customized Low Price High Quality Flap Wheel Belt Polishing Machine

Quick Details Place of Origin: Shandong, China Brand Name: HAIGE Condition: New Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: Hot Product 2019 Warranty of core components: 1 Year Core Components: Motor Power (kW): 7.5 Weight (KG): 0 Key Selling Points: Easy to Operate Warranty: 1 Year, 12months Applicable Industries: Manufacturing Plant Showroom Location: None After sales service: engineers are available to supervise on site Color: customized applications: automobile sector Standard: ISO9001 Pesonnel training: provided Application: Polishing Function: Polishing Type: Fully Automatic Keyword: Round Polishing Machine After-sales Service Provided: Online support, Video technical support After Warranty Service: Video technical support, Online support Local Service Location: None
Send Inquiry
Product Description
Description:
Introduction SDP series abrasive belt polishing machine is a high-efficiency special polishing machine for external polishing of slender shafts and other bars. The characteristic is high efficiency and good effect. It can be used to polish the surface of the bar after turning on a centerless lathe , which can further improve the accuracy and surface roughness of the bar. It can also be used in conjunction with multiple sets, respectively equipped with different abrasive belts and contact wheels to complete a series of processes of rough grinding, semi-finish grinding, fine grinding and polishing.
Quality: Our company regards quality as life. We have already passed ISO9001 certification, and strictly implement the ISO9001 international quality management system. We keep improving quality in order to let customers buy with comfort and use with satisfaction. Our company can also make specified equipment according to customers’ requirement. Our service: 1. Free quality guarantee period for 12 months, except for wearing parts.  2. Free provide long-term technical support  3. Free train buyer’s operator in seller’s factory  4. Fast response service within 24 hours  5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs. Packaging and shipping we have much experience in exporting transportation packaging. Taking multi protection measures: The first layer wrapping with foam film and stretch film for the special components, in order to avoid moisture. Second layer inside of plywood box, adopting small square plywood block and strapping belt to fix. Third layer the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut. Fourth layer in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.

Specification
Model
SDP160
Raw material
Polishing range (mm)
Φ40~Φ160X3000m~9000m
Tensile strength σb (Mpa)
≤1100
Surface hardness
≤HRC40
Curvature (mm/m)
≤1. 5 ①
Diameter tolerance
≤IT10 (standard tolerance grade)
Roundness
≤50% of diameter tolerance
Surface roughness (Ra)
≤3.2~6.4m
Finished product
Diameter range (mm)
Φ40~Φ160
Single side polishing depth (mm)
0.02~0.08
Diameter tolerance
≤IT10 (standard tolerance grade)
Surface roughness (Ra)
≤1.5μm
Curvature (mm/m)
Same raw material
Roundness
≤50% of diameter tolerance
Polishing feed speed (stepless speed regulation) m/min)
0.5~2.0m/min
Rotation speed of grinding wheel shaft (infinitely variable) (r/min)
1000~1800
Main motor power (kW)
11kW (4 poles)
Feed motor power (kW)
4 (4 poles)
Dust removal motor power (KW)
4 (Level 4)
Dimensions (m) (reference)
Unit 1.3 (length) X1.5 (width) X1.8 (height)
Weight (t) (reference)
Host 5T
Total installed capacity of main engine (kW)
30KW
Thousand impeller specifications
Φ300X100 2 pieces
Chiba wheel mesh
60#~400#
Product Display
