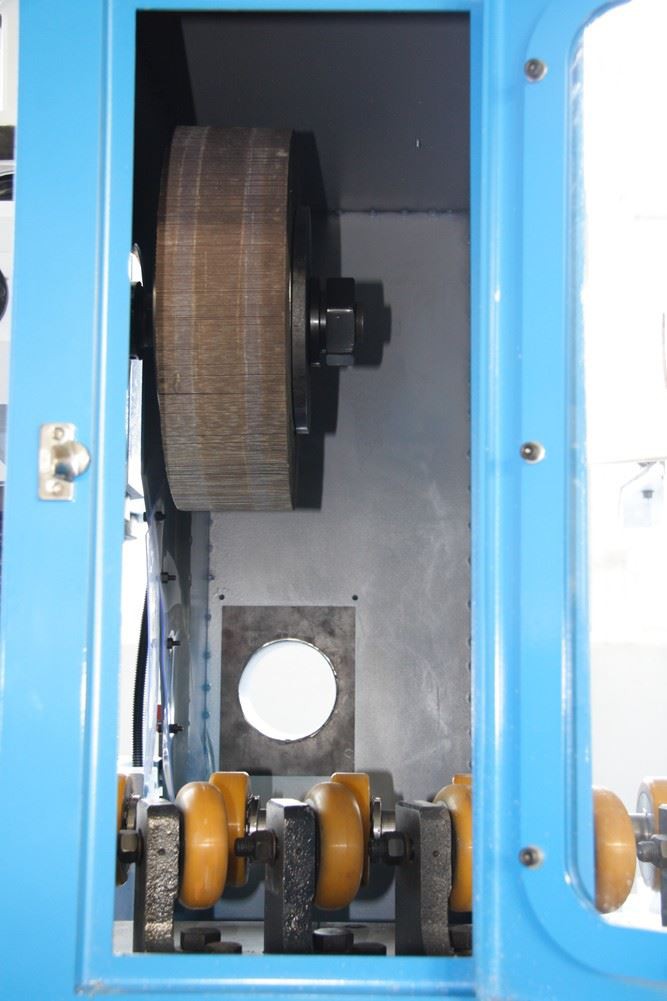

Flap Wheel Polishing Machine SDP50
Flap Wheel Polishing Machine SDP50

Flap Wheel Polishing Machine SDP50

Quick Details Place of Origin: Shandong, China Condition: New Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: Hot Product 2019 Warranty of core components: 1 Year Core Components: Motor Power (kW): 7.5 Weight (KG): 0 Key Selling Points: Easy to Operate Warranty: 1 Year, 12months Applicable Industries: Manufacturing Plant Showroom Location: None After sales service: engineers are available to supervise on site Color: customized applications: automobile sector Standard: ISO9001 Pesonnel training: provided After-sales Service Provided: Online support, Video technical support After Warranty Service: Video technical support, Online support Local Service Location: None
Send Inquiry
Product Description
Description:
HGP80 is the third generation passing type polishing machine designed by our company. This machine has the advantage of low surface roughness before and after plating process, and long life expectancy of equipment component. Applied with the technology of dry polishing and installed with the latest generation (4th generation) of wet type dust collector, its excellent dust removal effect will provide a clean and tidy environment, and emission can be discharged directly inside the work place.
Quality: Our company regards quality as life. We have already passed ISO9001 certification, and strictly implement the ISO9001 international quality management system. We keep improving quality in order to let customers buy with comfort and use with satisfaction. Our company can also make specified equipment according to customers’ requirement. Our service: 1. Free quality guarantee period for 12 months, except for wearing parts.  2. Free provide long-term technical support  3. Free train buyer’s operator in seller’s factory  4. Fast response service within 24 hours  5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs. Packaging and shipping we have much experience in exporting transportation packaging. Taking multi protection measures: The first layer wrapping with foam film and stretch film for the special components, in order to avoid moisture. Second layer inside of plywood box, adopting small square plywood block and strapping belt to fix. Third layer the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut. Fourth layer in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.

Specification
Item
Parameters
Remarks
Main machine
HGP80
double-deck full-closed
Workpiece
diameter range: Ø8-Ø50mm
length range: 4000mm - 6000mm

Material of workpiece
45#、27SiMn、1Cr18Ni9Ti + hard chrome plating
surface hardness before electrical plating HRC 56~62
Thickness of hardened layer: 2~3mm
surface hardness after electrical plating more than 800HV
Weight of per workpiece
≤120Kg

Surface roughness after po
lishing before chrome plating
Ra≤0.1μm
surface roughness before polishing after chrome plating should be Ra0.4-0.8μm
the polishing allowance 0.02~0.03mm, after polishing, don't change the geometric tolerance of the workpiece
Surface roughness after polishing after chrome plating
Ra≤0.1μm

Polishing speed
0.26-1.5m/min

Total capacity
66.7KW

Size of Polishing Wheel
Ø350×145×75

Configuration of Polishing Wheel
400#, 400#, 600#, 600#, 1000#, cloth wheel, linen wheel
400#-rubber grinding wheel, the size: Ø350×50×2pcs
wet-type dust-removal system
11KW(including pipeline 1 set)

Power source
Voltage 380V+/- 10%,50Hz,3 Phase 5 wires

Weight of main machine
17.8 Tons

Weight of fan
3.8 Tons

Automatic loader and unloader
3.6 Tons

Air supply
0.6Mpa

Noise
≤80db

Product Display
