Good Quality Cheap Price Manufacture Supply Planetary Belt Bar Polishing Machine
Good Quality Cheap Price Manufacture Supply Planetary Belt Bar Polishing Machine

Good Quality Cheap Price Manufacture Supply Planetary Belt Bar Polishing Machine

Quick Details Place of Origin: Shandong, China Brand Name: haige Condition: New Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: Ordinary Product Warranty of core components: 1 Year Core Components: PLC, Bearing, Gearbox, Motor, Gear Power (kW): 25.5 Weight (KG): 26000 Key Selling Points: Easy to Operate Warranty: 1 Year, 12months After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support After Warranty Service: Video technical support, Online support Local Service Location: None Applicable Industries: Manufacturing Plant Showroom Location: None After sales service: engineers are available to supervise on site Applications: automobile sector Color: customized Type: double-head Standard: ISO9001 Pesonnel training: provided Diameter deviation: ≤h10 Straightness: ≤1‰ Length range: 3-6
Send Inquiry
Product Description
Technical specifications and equipment composition of the unit:
1. Blank 1.1 Material: titanium alloy, stainless steel, bearing steel, spring steel, alloy tool steel, carbon tool steel, high-speed tool steel, high-quality carbon steel, alloy structural steel, non-quenched and tempered steel, free-cutting steel, valve steel, gear Steel, die steel and various non-ferrous metals, pipes, etc. 1.2 Dimensions: Diameter range: Φ30-Φ100 Diameter deviation: ≤h10 Straightness: ≤1‰ Surface roughness Ra; ≤3.2-6.3 Length range: 3M-6M (can be lengthened as needed)
2. Finished product 2.1 Diameter range: Φ30-Φ100 2.2 Grinding amount: 0-30μm 2.3 Surface roughness Ra; ≤2.5-3.2
3. Main technical parameters 3.1. Abrasive belt speed (infinitely variable speed) 20M/S 3.2 Reel speed (stepless speed change): 58r/min 3.3. Working feed speed (infinitely variable speed): 1.5m/min 3.3.1 Design walking speed (infinitely variable speed): 0-5m/min 3.4. Main motor power: 4kW 3.5. Feed motor power: 1.5KW2 sets 3.6. Abrasive belt motor power: 2 sets of 3KW 3.7. Roller motor power: 1.5KW 2 sets 3.8. Lifting motor power: 1.5KW 2 sets 3.9, hydraulic station motor: 1.5KW 3.10. Dust removal motor: 5KW 3.11, running noise: ≤75dB
4. Energy media parameters 4.1. Voltage: 3X380V±10% 4.2 Frequency: 50HZ±2% 4.3. Installed capacity: 28KW 4.4. Pneumatic flow: 0.07m3/min
5. Equipment composition 5.1. Feeding rack: 1 set 5.2. Feeding roller: 1 set 5.3 Host: 1 5.4. Pinch device: 2 sets 5.5. Unloading roller table: 1 5.6. Unloading rack: 1 set

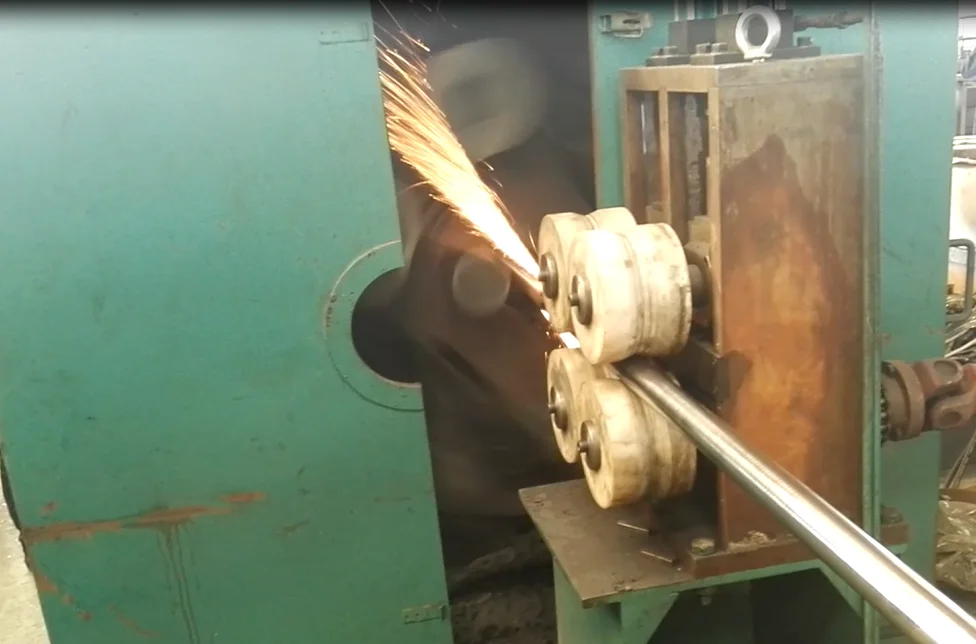

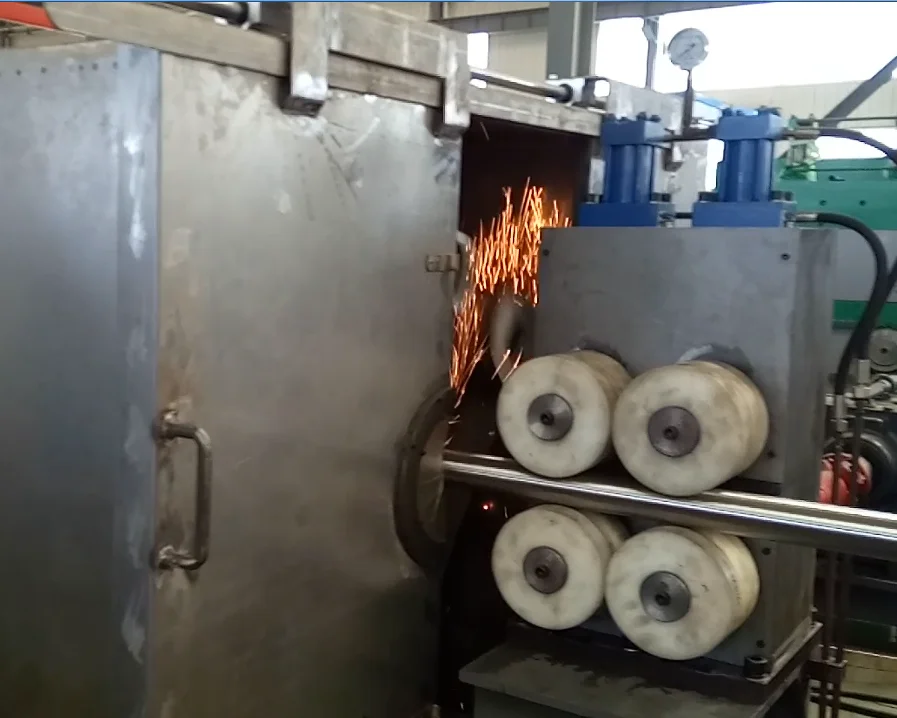

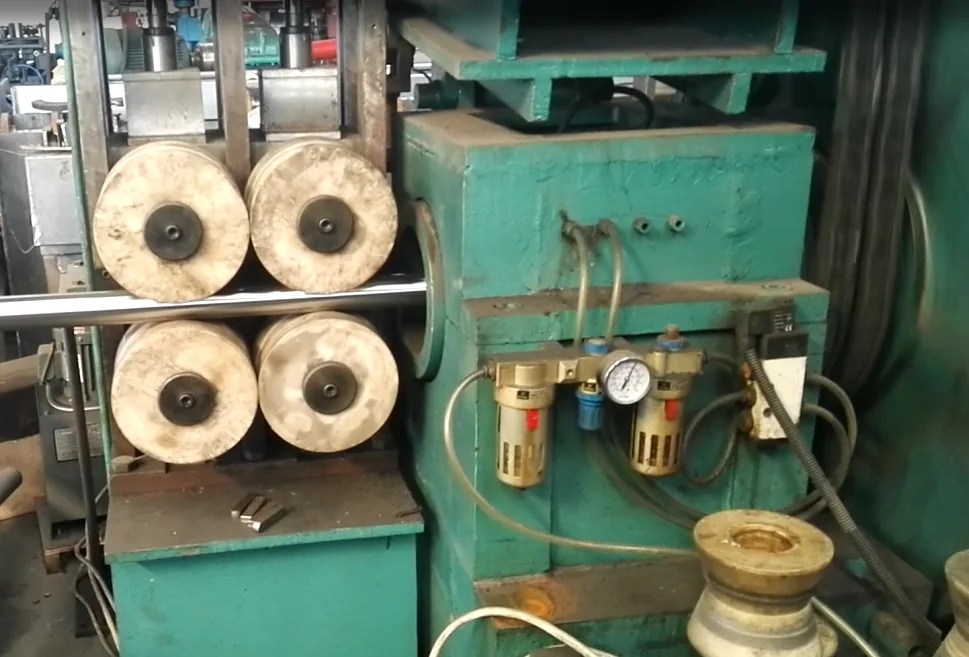

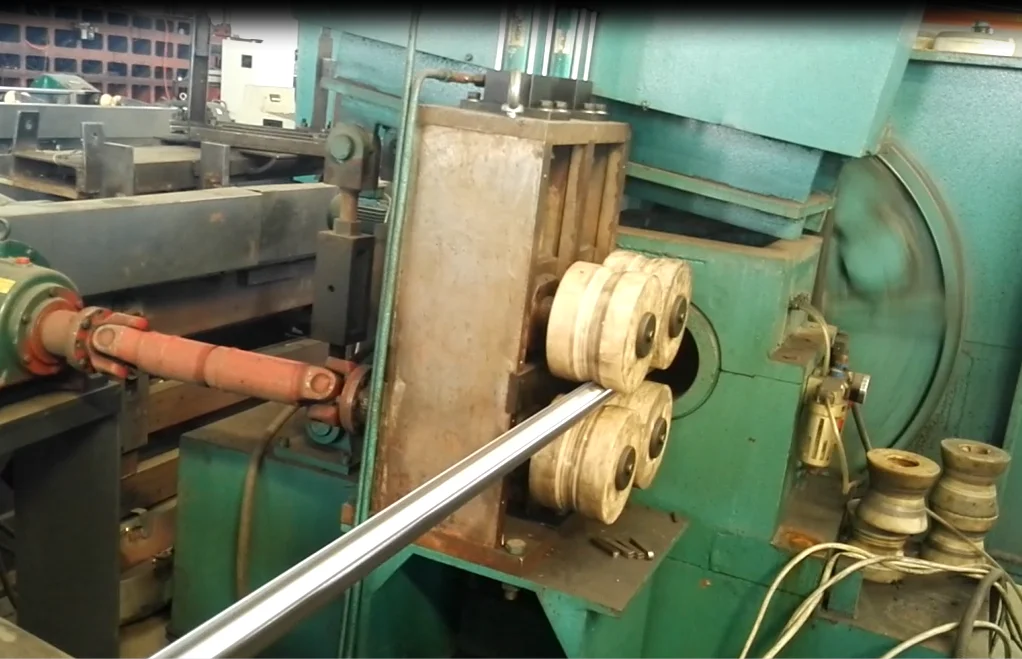

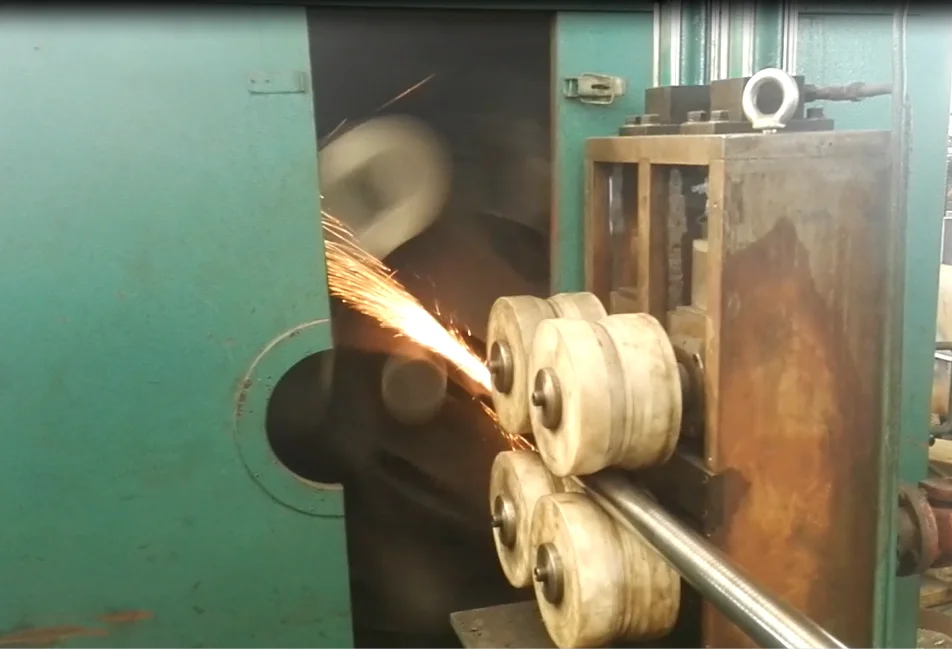

Product Display
Company Profile
   Yantai Haige International Trading Co.,Ltd.,is a joint-stock enterprise engaged in exporting products such as machines,pumps and parts etc. produced in China to the markets abroad,which is located in Laishan district,Yantai City,Shandong Province,China.    Our company is based on the manufacturing plant-Yantai Haige machine tools Co.,Ltd and Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. which focus on manufacturing many kinds of metal finishing equipment. Area of the factory is about 10000 square meter. There are one hundred and sixty staffs working in the factory,includes 14 staffs focusing on R&D.
   We have exported various products which mostly are machines and machine parts to many countries.We can provide timely oversea service.    We are the exclusive agent of Yantai Volm Vacuum Technology Co.,Ltd.,which  focus on manufacturing various of vacuum pumps,we represent their business in international markets.Also we are appointed to be the sole sales agent of Shandong Gexin machinery manufacturing Co.,Ltd. for their Rotational Moulding products and machine.    We focus on the the quality of the products we sell,We welcome you to our plant and hope to have the pleasure of providing you the perfect products and best services.
