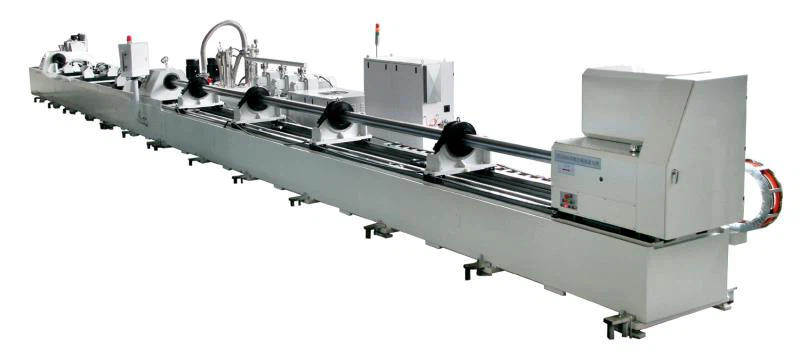

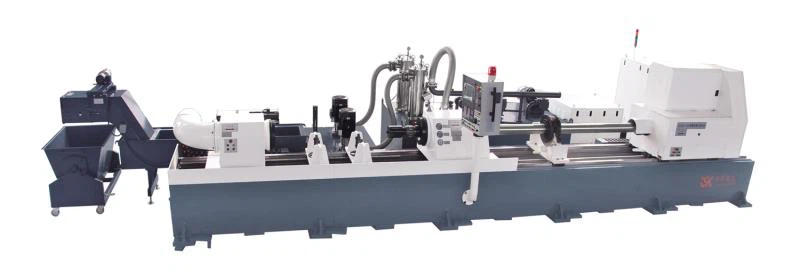

HGG2120 CNC Skiving Roller And Burnishing Machine

Name: China HGG2120 CNC Skiving Roller And Burnishing Machine Manufacturers - Haige
Brand: HAIGE
SKU: 154470981

The WXC series of center-less lathe and JY series of straightening machines are high -level new equipment with independent intellectual property rights on the basis of absorbing and digesting foreign advanced technology, making adventurous innovation, and research&development take into consideration of actual situation of domestic companies. Our technology reaches the domestic advanced level in reliability and quality while keeps a relatively lower price, with its efficiency more several times than the conventional process. Our products are suitable to process different kinds of metal material, for instance, black metal material such as structural steel, alloy steel, spring steel, bearing steel,tool steel, copper and copper alloy, aluminum and aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials. WXC series of centerless lathe is high-efficient specialized lathe to make a rough or fine machining to the surface of bar material such as slender shaft and other bars. It is able to not only get rid of the imperfection on the bar surface , de-carburized layer, crack etc, but also to guarantee relatively high accuracy. It is especially suitable to process extra long bar and bar with large machining allowance.

Send Inquiry

一、The overall performance of the equipment

Diameter range (inner diameter) of workpiece suitable for machining: Ф40-Ф200

Longest workpiece length: 3000mm

二、Overview

This machine tool is the latest development of our company, The new generation of efficient deep hole workpiece processing and machine tool which can replace the old deep hole boring machine,The machine tool is equipped with high power, strong rigidity, high precision, wide processing technology margin, flexible technology and high cost performance. This machine adopts the one time process of boring, skiving and Burnishing the workpiece without moving the workpiece when the tool turns .Processing efficiency is very high, processing product quality is stable, It is the replacement product of deep hole oil cylinder processing equipment.

三﹑Main technical parameters:

	Item Name	Parameter
	Boring diameter range	Ф40-Ф200mm
	Work piece length	3000mm
	Center height	> 350mm
	Spindle box internal hole	Ф80mm 1:20
	Boring bar spindle box spindle speed range	100-1000r/min（Stepless speed control with AC frequency conversion）
	Spindle box spindle output torque	≥800N.m
Feed parameter	Range of feed speed	5-2000mm/min（Stepless）
Feed parameter	The drag plate moves quickly	3m/min
Processing precision	Positioning length	0-4m
	Workpiece boring surface roughness	≤Ra3.2μm
	Roughness of rolling surface of workpiece	≤Ra0.4μm
	The roundness of the workpiece	≤0.036/200mm
Motor capacity	Boring bar motor power	45KW Ac variable frequency motor
	· Feed motor	5.5KW Ac permanent magnet servo motor 1 set
	Hydraulic oil pump motor	1.5KW AC Motor 1 set
	Output cooling pump motor power	15KW、 1set
	Automatic lubrication motor power	0.2KW、 1set
Others	Cooling system flow	250L/min
	Rated pressure of cooling system	1.5Mpa
	Filter Precision	40 micron
	Cooling box capacity	3 cubic
	The maximum preload of the headstock on the workpiece	40KN
	SIZE	（9000）X4500X1850
	Gross Weight	Approximately（22）T

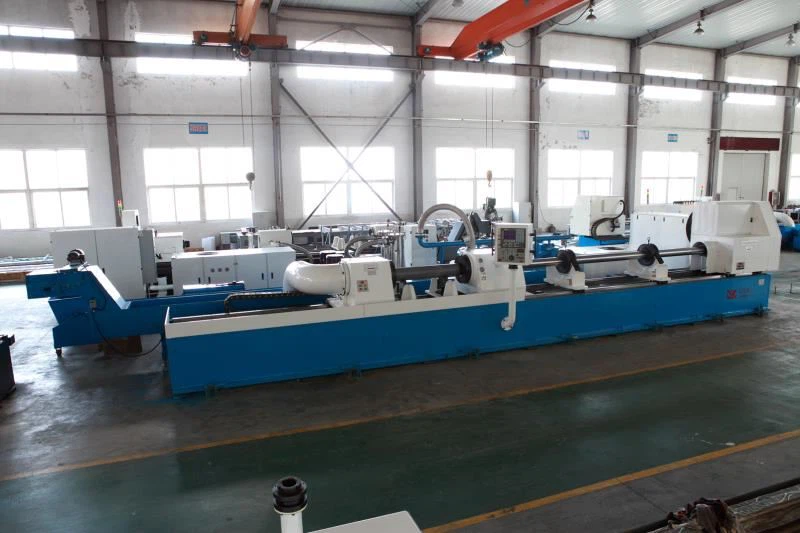

四、Machine structure and configuration details

A. Main body

1. Bed body W800×H650×L9000 1SET

2.Boring bar box Assembly 1SET

3. Boring bar box feed Assembly 1SET

4. Boring bar support assembly 1SET

5. Oil feeder assembly 1SET

6. OIL feeder Feed Assembly 1SET

7. Workpiece support assembly 2SET

8. Head frame assembly 1SET

9. Calliper assembly 1SET

B. Cooling system

1. Cooling oil pump assembly 1SET

2. Cooling oil tank 3 cubic 1 PCS

C. Hydraulic

1. Hydraulic oil pump assembly 1SET

D. Lubrication

1.Automatic lubrication 1SET

2.Manual lubrication 2SETS

E. Workpiece auxiliary and boring bar auxiliary

1. Boring bar support rotating assembly 1SET（100）

2. Oil feeder rotating sleeve 1SET（100）

3. Boring bar 1PCS 100

4. Workpiece jack plate of oil feeder 1SET（125）

F. Head frame workpiece jack plate 1SET（125）

SRBM1

SRBM3

SRBM2

SRBM4

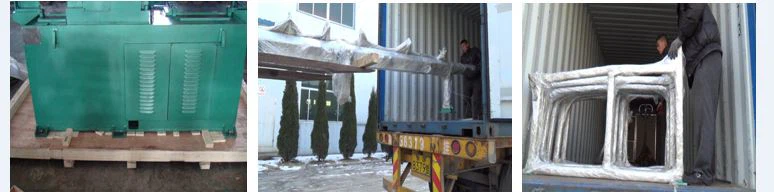

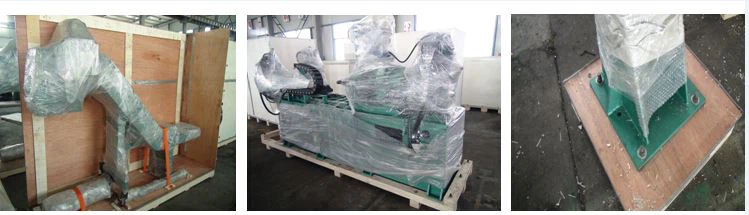

5.Packing and delivery:

QQ20210713130924

QQ20210713130934

QQ20210713130942

we have much experience in exporting transportation packaging. Taking multi protection measures:

The first layer
wrapping with foam film and stretch film for the special components, in order to avoid moisture.

Second layer
inside of plywood box, adopting small square plywood block and strapping belt to fix.

Third layer
the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.

Fourth layer
in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.

6. company profile:

H30a2bcb9bbec496ab9be85c15a3b741fE

Hffdc8f56f7104ca188b1154e3ff1b570S

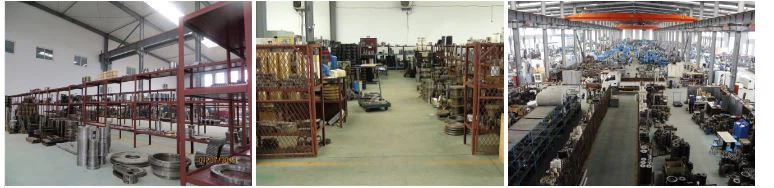

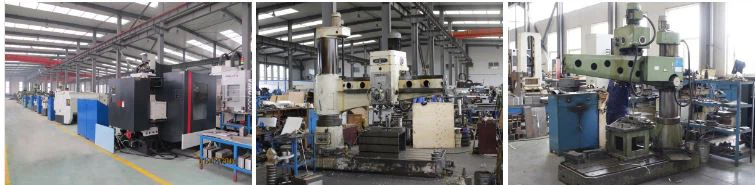

Yantai Haige International Trading Co.,Ltd.,is a joint-stock enterprise engaged in exporting products such as machines,pumps and parts etc. produced in China to the markets abroad,which is located in Laishan district,Yantai City,Shandong Province,China. Our company is based on the manufacturing plant-Yantai Haige machine tools Co.,Ltd and Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. which focus on manufacturing many kinds of metal finishing equipment. Area of the factory is about 10000 square meter. There are one hundred and sixty staffs working in the factory,includes 14 staffs focusing on R&D.

QQ20210713132340

QQ20210713132349

We have exported various products which mostly are machines and machine parts to many countries.We can provide timely oversea service. We are the exclusive agent of Yantai Volm Vacuum Technology Co.,Ltd.,which focus on manufacturing various of vacuum pumps,we represent their business in international markets.Also we are appointed to be the sole sales agent of Shandong Gexin machinery manufacturing Co.,Ltd. for their Rotational Moulding products and machine. We focus on the the quality of the products we sell,We welcome you to our plant and hope to have the pleasure of providing you the perfect products and best services.

7. Customer visit:

QQ20210713132550

8. Exhibition:

QQ20210713132605

9. Certificate:

10. customer service:

1 Free quality guarantee period for 12 months, except for wearing parts.

2. Free provide long-term technical support

3. Free train buyer’s operator in seller’s factory

4. Fast response service within 24 hours

5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs.

11. FAQ:

1. When is the delivery time? Delivery will occur between 15 and 20 days from order date. Faster delivery time can be arranged if needed. 2. Do you have any MOQ limit? Yes it depends on the products’ size and production process. 3. What’s your payment method? Paypal, T/T, L/C, Western Unions, are available.
