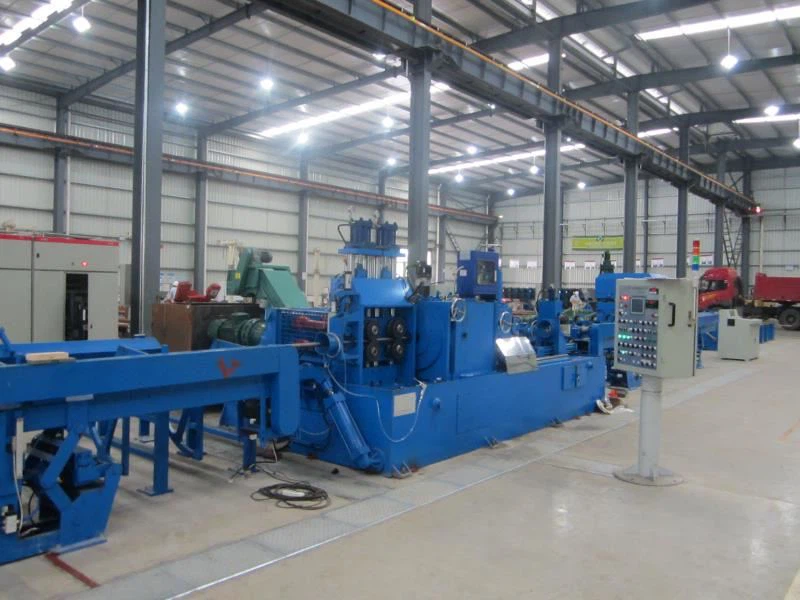

High Quality WXC130S CNC TYPE Centerless Lathe

The WXC series of center-less lathe and JY series of straightening machines are high -level new equipment with independent intellectual property rights on the basis of absorbing and digesting foreign advanced technology, making adventurous innovation, and research&development take into consideration of actual situation of domestic companies. Our technology reaches the domestic advanced level in reliability and quality while keeps a relatively lower price, with its efficiency more several times than the conventional process. Our products are suitable to process different kinds of metal material, for instance, black metal material such as structural steel, alloy steel, spring steel, bearing steel,tool steel, copper and copper alloy, aluminum and aluminum alloy, magnesium alloy, titanium and titanium alloy and other non-ferrous metal materials. WXC series of centerless lathe is high-efficient specialized lathe to make a rough or fine machining to the surface of bar material such as slender shaft and other bars. It is able to not only get rid of the imperfection on the bar surface , de-carburized layer, crack etc, but also to guarantee relatively high accuracy. It is especially suitable to process extra long bar and bar with large machining allowance.

Send Inquiry

product-974-382

130s

130s2

Equipment Description.

Main machine body:

It is composed of a bed, main spindle, oil air lubrication system, front clamping feed in, clamping car, rear clamping extracting, front guide, middle guide, rear guide, main driving components.

The spindle driven by the main drive through the synchronous belt enable the cutter head which is equipped with four adjustable cutters to produce the precision and high speed rotation movement. Bar is delivered in through the front feeding clamping device which gives the bar the linear forwarding motion. Front guide makes the central location to the bar, and after that, the cutting head begins peeling process. After peeling, the bar enters to the middle and rear guide part to experiences another central location. The extracting components deliver the after-peeling bar to unloading rollers, and the high speed peeling process is finished towards the bar material.

When the bar is peeling almost to the end, clamping car automatically fastens it, and synchronously extracts it with front guide component, which guarantees that there is no obvious dent on the bar surface after peeling.

The 4 cutter bars on cutter head are motivated through servo motor. Radial size adjustment can be realized without machine shutting down after the precise speed reducing and cutting tool radial size adjusting.If the discharge detection control system is installed, the machine nonstop automatic adjustment control can be realized.

Every tool holder can be made fine adjustment, and it can also be adjusted to a certain value on the tool holder regulator in advance, for the sake of fast replacement to enhance the working capacity.

For the convenience of cutter replacement in the cutting head, the front guide is push-out structure on a whole.

The oil and gas lubrication system is especially designed to provide the effective lubrication for the high-speed rotating components, and is a reliable and economic method of lubricating for the high-speed spinning bearing. The lubricating oil has to be Great-Wall brand(or better brand with higher quality) mechanical oil or anti-wear hydraulic oil. Use No.68oil in summer and No.46 in winter. Used oil is forbidden in the oil and gas lubrication system.

Chain plate chip removing machine:

The chain plate chip removing machine is the matching product made by cooperative companies. Peeling chip falls down to the plate of chip removing device and is collected through belt delivering.

Hydraulic system:

Hydraulic system is mainly composed of pump set motor, various kinds of valves, hydraulic oil tank, hydraulic pipes, etc. It can realize the clamping and loosing movement towards work-piece through oil tanks in the front clamping feeding and rear clamping extracting components.

Electric and air system:

Electric and air system is composed of electric power system and control system, which contains 1 power distribution cabinet and 1 operation button stations. It can realize electric and air control towards the front feeding in and and rear extracting system, cooling system, hydraulic system, chip conveyor and electric control of auxiliaries.

The main drive system adopts variable frequency stepless speed regulation, and the hydraulic cylinder is controlled by proportional valve.

The touch screen can display parameters such as spinning speed of cutting head and feeding speed.

The front clamping feeding, rear extracting system and the loading and unloading rollers all adopt variable frequency step-less speed regulation. The control system is functioned by semi-automatic buttons.

The main power supply is 380V 50Hz AC. The control power supply is 220V 50Hz AC, and the control system is weak current power supply (DC24V). The main components are all famous brand products.

Loading and unloading device

Loading platform is adopted in the loading device, while in unloading device, U shape material groove is used. Canvas bags in the unloading part of machine can automatically lift and drop to protect the work-piece away from all the scratching and fiction.
