Product Description
Description:
Introduction
2M5015WA-4B type four-head cylindrical belt grinder is a machine tool specially used for cylindrical grinding of pipe and bar workpieces. According to user requirements, the equipment adopts abrasive belt for grinding. The machine is equipped with four abrasive belt grinding heads according to the design parameters. The workpiece rotates and feeds continuously, with the material rack and automatic loading and unloading mechanism, the workpiece can be processed continuously in batches. According to the grinding process, single grinding head or multiple grinding heads can be selected. The equipment has the characteristics of stable processing accuracy, good surface quality, high work efficiency, low processing cost and low labor intensity.
Specification
Main Parameters
1 Specification of Grinding Belt: 3480×150mm (circumference×width)
2. Grid of belt: 60#~320#(optional within this range)
3Diameter range of workpiece: Φ25~Φ 85mm
4Length range of workpiece: 2500~8000mm
5Material of workpiece: Carbon steel, stainless steel, alloy steel
6Curvature of workpicec: 2.5/1000mm
8Surface roughness: Ra ≤1.6μ m (before polished :≤12μ m)
9Weight of single workpiece: ≤350kg
10Unilateral grinding depth: ≤0.05mm
11Specification of contact wheel of grinding belt: Φ 400×150mm (diameter*width)
12Linear velocity of grinding belt: 30m/s
13Rotational speed of conveying wheel: 20～50r/min (frequency conversion Adjustable)
14Axial feeding rate: 0~4m/min(rate adjustment in continuously transmission ,by Variable frequency transmission motor)
15Motor power of grinding head: 15kw (4 pcs)
16Motor power of conveying wheel: 1.1 kw (9 pcs)
17Motor power of lifting grinding head ： 0.75 kw (2 pcs)
18Motor power of synchronously movement of conveying wheel: 1.1kw flow 120L/min
19 Power supply: AC 3 phase 380v 50HZ input power: 123kw
20 Air supply: 0.4Mpa 0.3m3/min
21 Machine overall dimension: 23000×4000×3000mm (length*width*height)
22 weight of machine: 22T

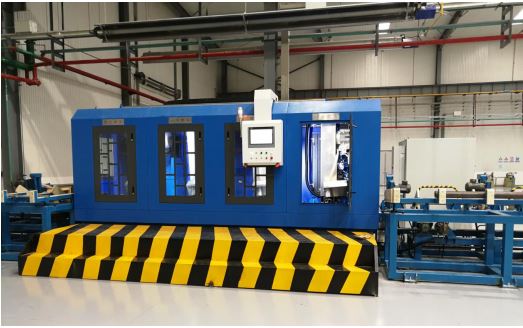

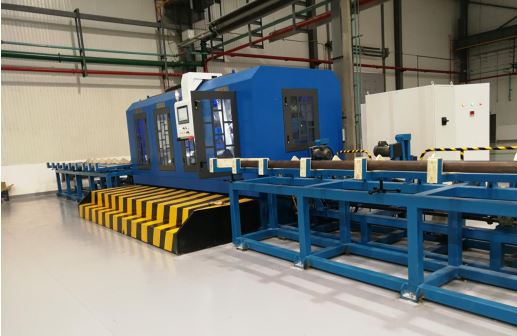

Product Display
