Roll To Roll Continuous Tin Plating Production Line

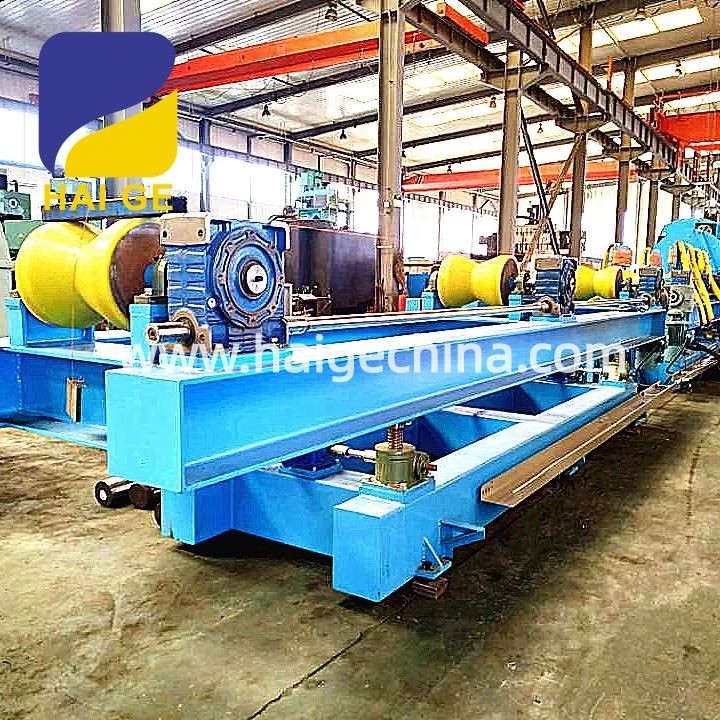

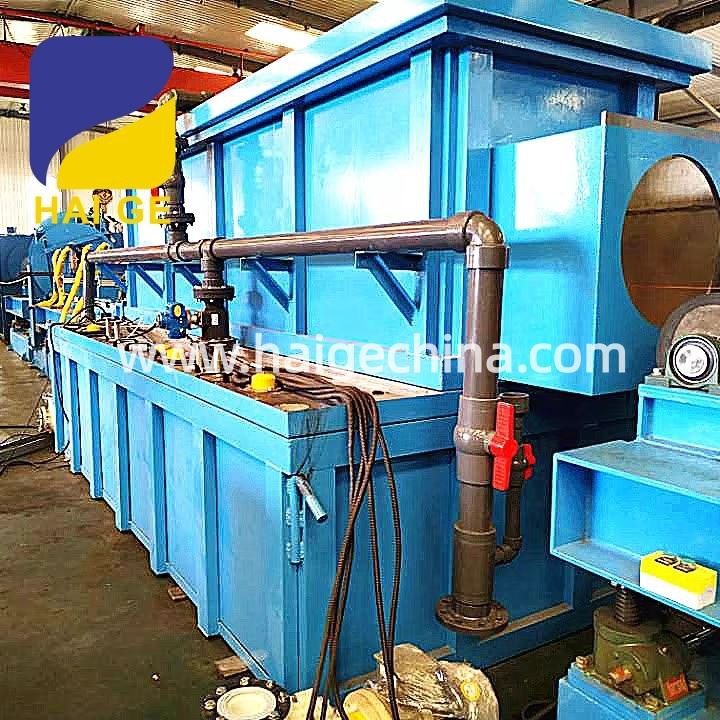

The equipment is through-type, used for two-layer chromium plating on the outer surface of round rod material (slender shaft). The equipment is composed of automatic feeding system, driving system, conductive system, activation system, electroplating system, automatic unloading system, pressure system, temperature control system and electronic control system.

Send Inquiry

Product descripation:

A/. Design Manufacture Standard :

1.GB5083-95《General Principles for Safety and Hygiene Design of Production Equipment"》

2. GB12348~12349 《Noise standards and measurement methods of industrial enterprises"》

3. GB50254-96 《Electrical installation safety engineering low-voltage electrical construction and standards of acceptance》

4.GB50258-96 《Electrical installation safety 1KW and The following wiring engineering construction and acceptance specification》

5.GB8978-1996 《Wastewater Discharge Standards of the People's Republic of China》

6.GB4793.1-1995 《Electrical safety laws and regulations》

7. GB8978-1996 《integrated wastewater discharge standard》

8. GB16297-1996 《The Integrated Emission Standard of Air Pollutants》

9. GGB50231-98 《Mechanical equipment installation engineering construction and General specification for acceptance》

10. GB50184-95 《Standard for quality assessment of industrial pipeline engineering》

II. Main technical parameters

B/. Equipment Design Specification

B-1 Specification

1) Name: terminal

2) material: copper

3) width:8~60mm

4) thickness:0.1~0.5mm

C-2 Condition

1) Max processing speed:18m/min

2) Mechanical speed:20m/min

3) Plating channel no.: 1

4) Production direction:vertical

5) Plating thickness:when nickelplate:1-4.0μm

6) Plating thickness:when tinning plate:2.0-8.0μm

8) Dimension: L 60x W 1.6xH 2.7 (m)

9) Blowing design:1000 M³/Hr(0.4Bar)

★10) Exhaust:2600 M³/Hr(Contains acid and alkaline waste gas)

★11) RO water flow:480 L/Hr

★12)　Pure water consumption:2160 L/Hr

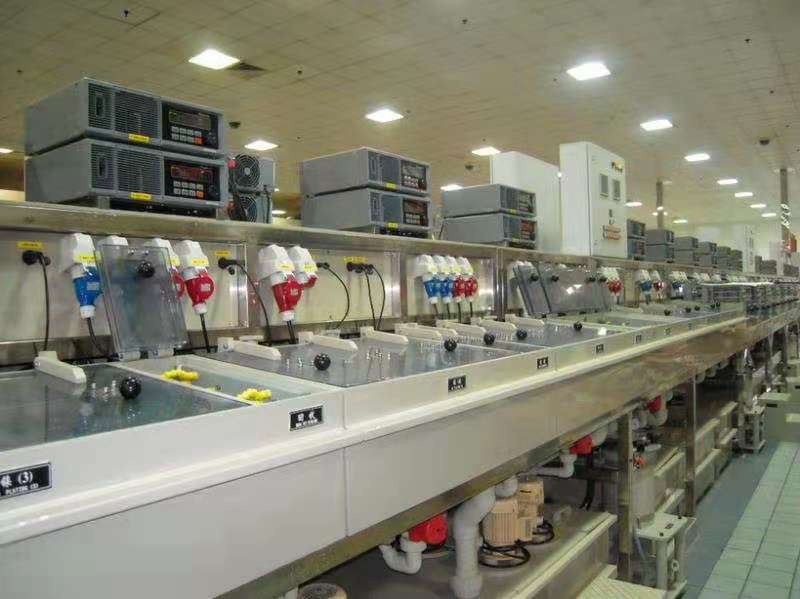

3. the picture of the equipment:

roll to roll plating 15

roll to roll plating 16

5.Packing and delivery:

QQ20210713130924

QQ20210713130934

QQ20210713130942

we have much experience in exporting transportation packaging. Taking multi protection measures:

The first layer
wrapping with foam film and stretch film for the special components, in order to avoid moisture.

Second layer
inside of plywood box, adopting small square plywood block and strapping belt to fix.

Third layer
the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.

Fourth layer
in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.

6. company profile:

H30a2bcb9bbec496ab9be85c15a3b741fE

Hffdc8f56f7104ca188b1154e3ff1b570S

Yantai Haige International Trading Co.,Ltd.,is a joint-stock enterprise engaged in exporting products such as machines,pumps and parts etc. produced in China to the markets abroad,which is located in Laishan district,Yantai City,Shandong Province,China. Our company is based on the manufacturing plant-Yantai Haige machine tools Co.,Ltd and Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. which focus on manufacturing many kinds of metal finishing equipment. Area of the factory is about 10000 square meter. There are one hundred and sixty staffs working in the factory,includes 14 staffs focusing on R&D.

QQ20210713132340

QQ20210713132349

We have exported various products which mostly are machines and machine parts to many countries.We can provide timely oversea service. We are the exclusive agent of Yantai Volm Vacuum Technology Co.,Ltd.,which focus on manufacturing various of vacuum pumps,we represent their business in international markets.Also we are appointed to be the sole sales agent of Shandong Gexin machinery manufacturing Co.,Ltd. for their Rotational Moulding products and machine. We focus on the the quality of the products we sell,We welcome you to our plant and hope to have the pleasure of providing you the perfect products and best services.

7. Customer visit:

QQ20210713132550

8. Exhibition:

QQ20210713132605

9. Certificate:

10. customer service:

1 Free quality guarantee period for 12 months, except for wearing parts.

2. Free provide long-term technical support

3. Free train buyer’s operator in seller’s factory

4. Fast response service within 24 hours

5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs.

11. FAQ:

1. When is the delivery time? Delivery will occur between 15 and 20 days from order date. Faster delivery time can be arranged if needed. 2. Do you have any MOQ limit? Yes it depends on the products’ size and production process. 3. What’s your payment method? Paypal, T/T, L/C, Western Unions, are available.
