Semi Automatic Type Steel Bar Peeling Machine Centerless Lathe For 100mm Dia Bars
Semi Automatic Type Steel Bar Peeling Machine Centerless Lathe For 100mm Dia Bars

Semi Automatic Type Steel Bar Peeling Machine Centerless Lathe For 100mm Dia Bars

Quick Details Place of Origin: Shandong, China Brand Name: HAIGE Condition: New Machine Type: Bar peeling machine Weight (KG): 40 Video outgoing-inspection: Provided Machinery Test Report: Provided Marketing Type: Hot Product 2019 Warranty of core components: 1 Year Core Components: Motor Warranty: 1 Year, 12months Key Selling Points: Easy to Operate Applicable Industries: Manufacturing Plant Showroom Location: None After sales service: engineers are available to supervise on site applications: applications:industrial plant Standard: ISO9001 Pesonnel training: provided color: customized Application: Steel Name: Steel bar peeling Usage: Steel bar peeling Function: Peeling
Send Inquiry
Product Description
Description:
Introduction Series WXC Peeling machine is a high-efficiency lathe which is specialized in processing the surface of steel round bar and steel wire rod, for example, straightening, peeling, cutting and polishing, etc. This machine can not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision. During processing, the bar doesn’t rotate itself. The cutting tools rotates at high speed to peel the surface of the bar. At the same time, after peeled, the bar keeps walking forward. Shapes of Workpiece are requested long steel round bar and steel wire rod.Quality: Our company regards quality as life. We have already passed ISO9001 certification, and strictly implement the ISO9001 international quality management system. We keep improving quality in order to let customers buy with comfort and use with satisfaction. Our company can also make specified equipment according to customers’ requirement. Our service: 1. Free quality guarantee period for 12 months, except for wearing parts.  2. Free provide long-term technical support  3. Free train buyer’s operator in seller’s factory  4. Fast response service within 24 hours  5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs. Packaging and shipping we have much experience in exporting transportation packaging. Taking multi protection measures: The first layer wrapping with foam film and stretch film for the special components, in order to avoid moisture. Second layer inside of plywood box, adopting small square plywood block and strapping belt to fix. Third layer the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut. Fourth layer in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.

Specification
Specification
Workpiece
Required
Diameter Range(mm)
25≤dia≤100
Length(mm)
≥2200
Yield Strength σb (Mpa)
≤1100
Surface Hardness
≤HB320
Straightness (mm/m)
≤1.50
Diameter Tolerance
According to GB 702-2004 second group
Roundness（mm）
≤50% of the diameter tolerance
Surface Roughness(Ra)
≤25-50μm
After Peeled
Diameter Range
24≤dia≤96
Diameter Cutting Depth (mm）
1~4
Diameter Tolerance
≤h11~h10
Surface Roughness(Ra)
6.3~3.2μm
After Straightened(Ra)
≤1μm
Roundness（mm）
≤0.04
Feeding Speed（m/min）
0.5-8.0
Cutter Head Rotational Speed(rpm)
240-1200 (stepless speed)
Main Motor Power(kw)
90
13.5Main Machine Weight (t)
30
Total Capacity(kw)
115

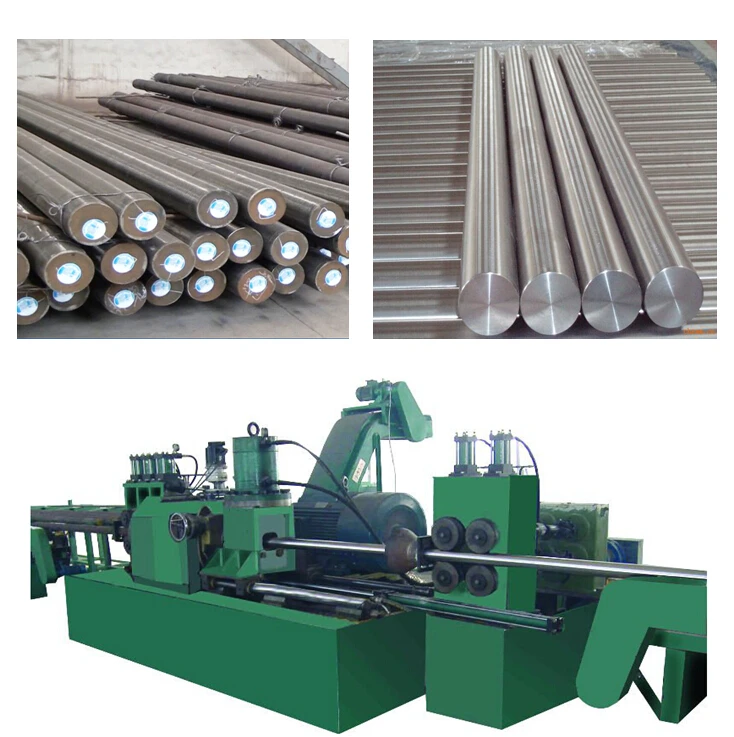

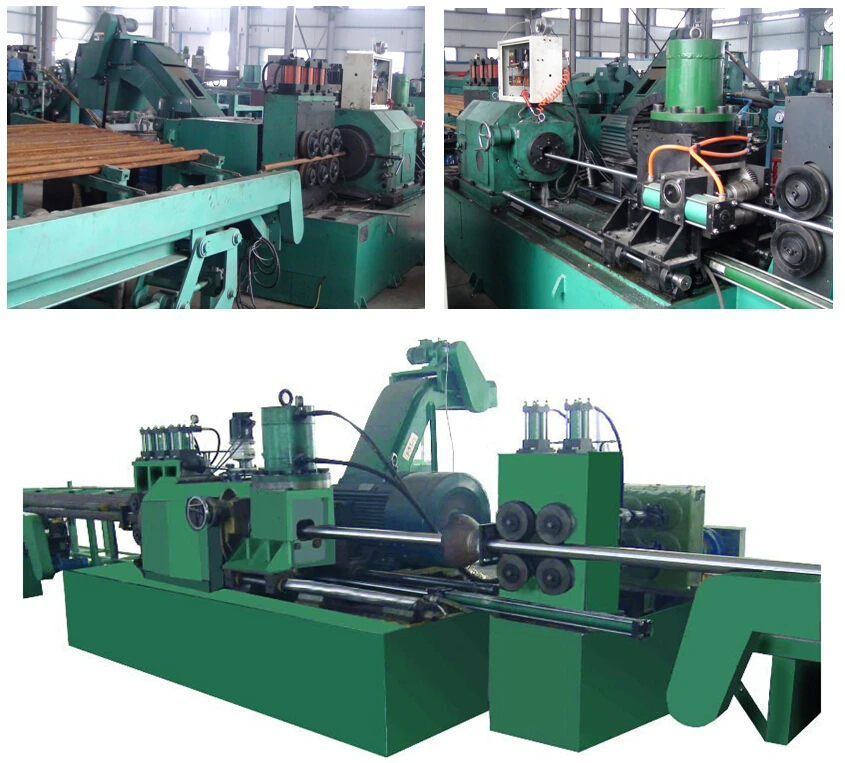

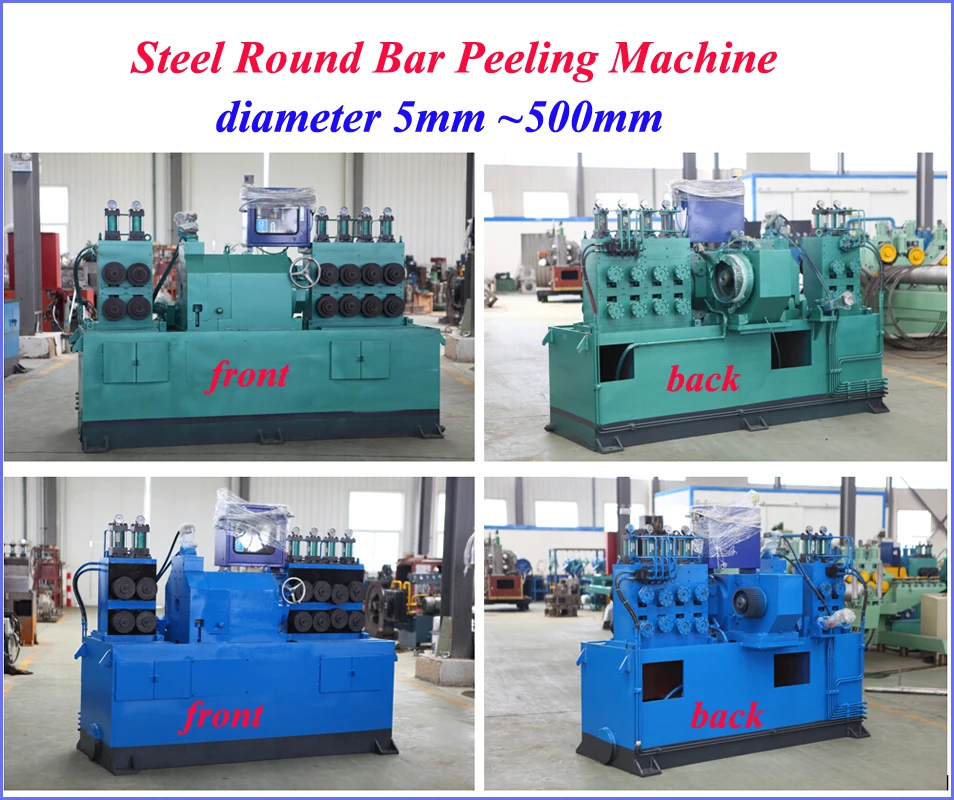

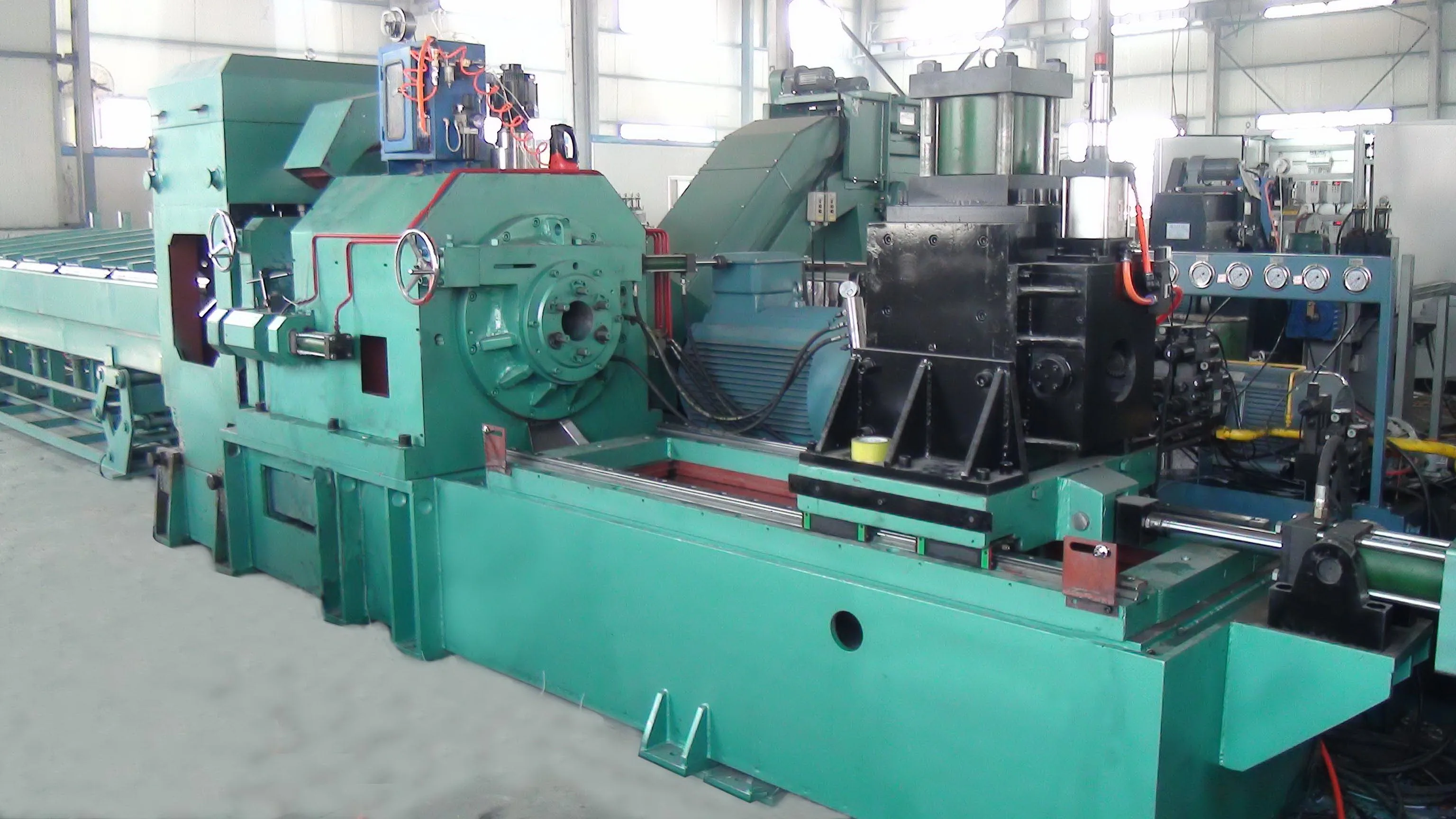

Product Display
