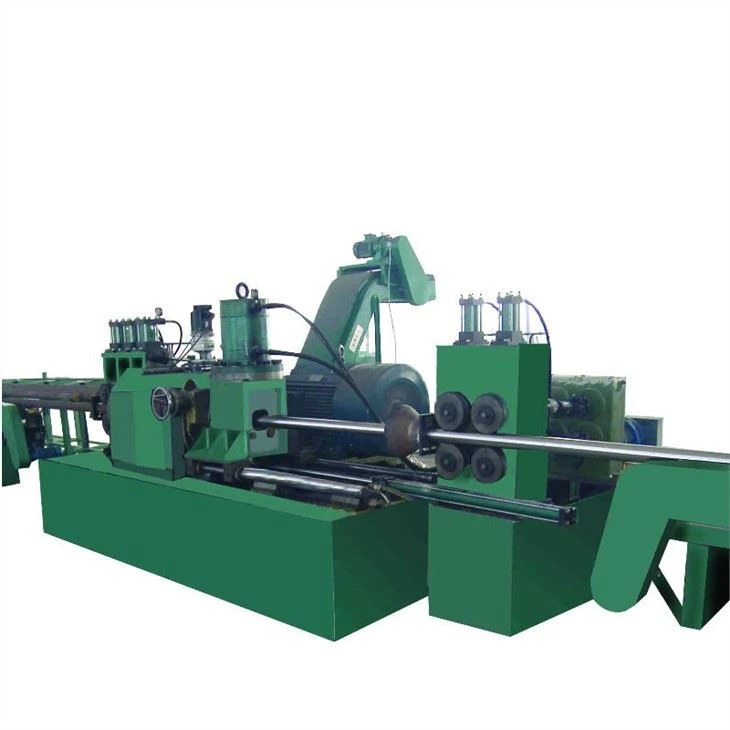

WXC-80S Carbon Steel Tube Peeling Machine Stainless Steel Tube Peeling Machine

WXC Series Centerless Lathe(commonly known as peeling machine)is a new generation high-efficiency lathe machine which is specialized in processing of metal bar surface such as slender shaft. It can not only quickly remove defects on the surface of round steel such as decarburization layer and cracks, but also realize relatively high precision and roughness. It is especially suitable for processing of super long round steel bar, with working efficiency several times of the traditional processing technology.

Send Inquiry

model		WXC80S
material requirement	diameter range (mm)	Φ20-Φ85
	material length (mm)	3.5M-6M
	yield strength(Mpa)	≤1100
	surface hardness	≤HB320
	straightness (mm/m)	1.5‰
	diameter tolerance	according to GB 702-2004 second group
	roundness(mm)	≤50% of diameter tolerance
	surface roughness(Ra)	≤25～50μm
finished product	diameter range(mm)	Φ25-Φ80
	diameter cutting depth(mm)	0.5~3
	diameter tolerance	≤h10
	surface roughness (Ra)	≤3.2μm
feeding speed (m/min)		1-3.5m/min
cutting head rotation rate per minute		160-500r/min
main motor(kw）		90
total capacity（kw）		95/110
compressed air (prepared by user)		0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
