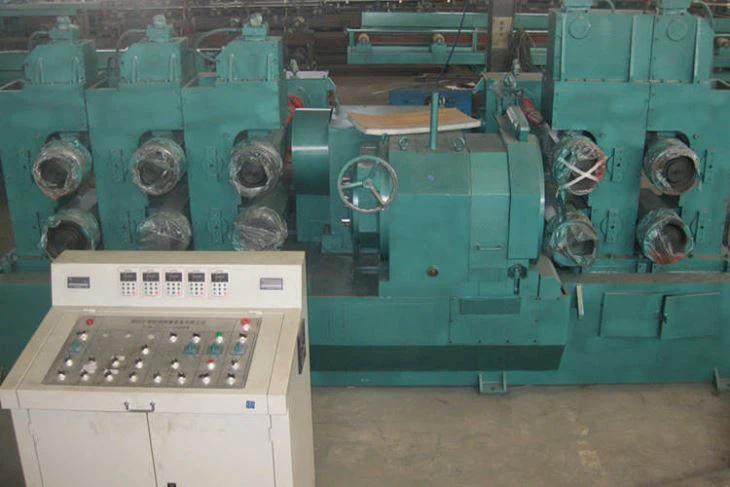

high precision bearing steel coil peeling machine
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Grinder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia, Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.
High precision bearing steel coil peeling machine is one of our main products, with a novel structure of transfer gear and universal shaft driving ,along with gear shift, it is more suitable for the wider required range of spinning speed and feeding speed.
The designing of gear driving and shifting structure make the machine widen its rotating speed range,accordingly the processing range. And the power transmission and maintenance is more convenient and reasonable.
| coil to bar | ||
| model | KP25 | |
| material requirements | diameter range | Φ8～Φ25mm |
| yield strength | ≦900N/nm² | |
| surface hardness | ≦HB320 | |
| straightness | ≦1.5mm/m | |
| roundness | ≦50%diameter tolerance | |
| surface roughness | ≦25µm | |
| after peeling parameter | cutting depth | 0.5~1.5 |
| diameter range | Φ7.5～Φ23.5mm | |
| diameter tolerance | ≦IT10 | |
| surface roughness | ≦6.3µm | |
| roundness | ≦0.03 | |
| speed | 1.0-8.0m/min | |
| uncoiler motor | 15kw | |
| uncoiler feeding motor | 2.2kw | |
| centerless lathe main motor | 45kw | |
| centerless lathe feeding motor | 4kw*2 | |
