CNC metal coil peeling machine
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Grinder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia, Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.

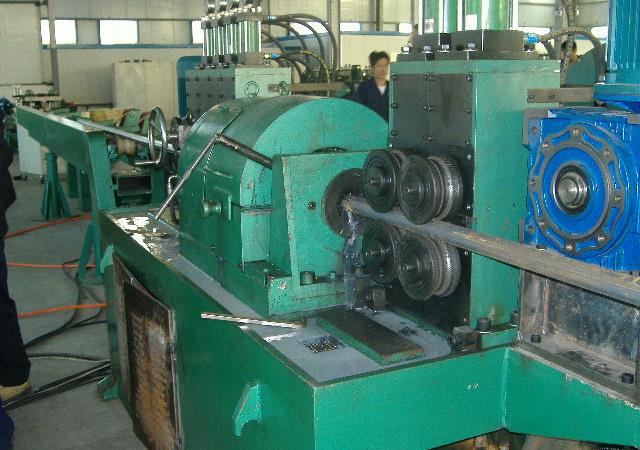

CNC metal coil peeling machine is one of our main products, deliver the processed bar material out for the convenience of carrying away. The unloading rack is weld structured piece, which has the same structure in front moving rack with loading rack, just in the reversed direction. There are slope guiding rails on sides to let the finished bar rolling down slowly. The material can be carried away through chain conveyor device.
| coil to bar | ||
| model | KP25 | |
| material requirements | diameter range | Φ8～Φ25mm |
| yield strength | ≦900N/nm² | |
| surface hardness | ≦HB320 | |
| straightness | ≦1.5mm/m | |
| roundness | ≦50%diameter tolerance | |
| surface roughness | ≦25µm | |
| after peeling parameter | cutting depth | 0.5~1.5 |
| diameter range | Φ7.5～Φ23.5mm | |
| diameter tolerance | ≦IT10 | |
| surface roughness | ≦6.3µm | |
| roundness | ≦0.03 | |
| speed | 1.0-8.0m/min | |
| uncoiler motor | 15kw | |
| uncoiler feeding motor | 2.2kw | |
| centerless lathe main motor | 45kw | |
| centerless lathe feeding motor | 4kw*2 | |
