high precision ss coil peeling machine
1.General Description:
Yantai Haige Machine Tools Co.,Ltd. was built in 1999, which specializes in producing steel finishing equipment,such as high precision ss coil peeling machine, Series JY Bar Straightening Machine,Abrasive Belt Ginder, Drawing Machine,Shot Blasting Machine, Centerless Grinding Machine,CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam,India, Pakistan,Iran,South Korea,North Korea,Taiwan and other countries and regions.
1.Specific Description:

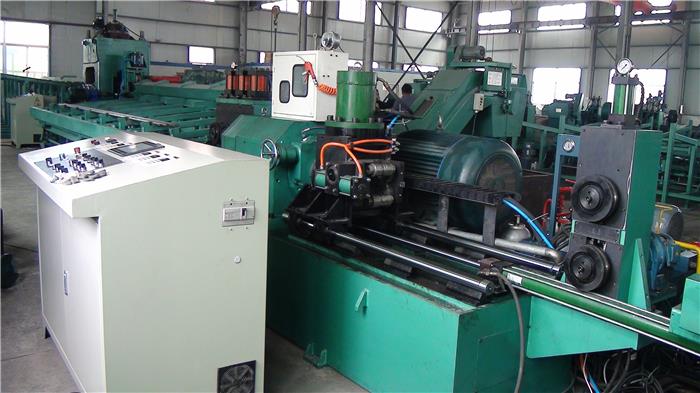

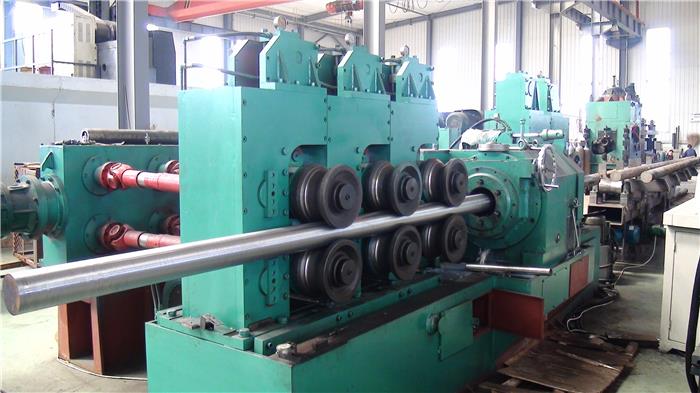

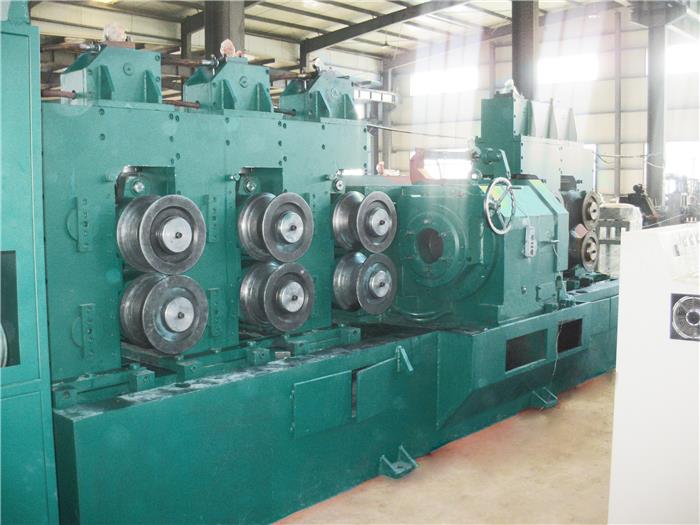

high precision ss coil peeling machine, can process the coil rod and turn it into straight bars with high precision. The most important part of this machine is the 2-roll precision straightener which can ensure the high precision of peeled bars. The 2-roll precision is composed of two rollers which are installed on the upper and lower body respectively. The upper roller is concave, the lower is convex. According to the diameter and the material properties, the angle between the two barrels is adjusted manually. In addition, the gap between the barrels can be adjusted through the feedback sent by the encoder.
model | WXC100S | |
material requirement | diameter range (mm) | 26＜dia＜105 |
material length (mm) | ≥2800 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25～50μm | |
finished product | diameter range(mm) | 25≤dia≤100 |
diameter cutting depth(mm) | 1.0~4.0 | |
diameter tolerance | ≤h9 | |
surface roughness (Ra) | ≤3.2μm | |
feeding speed (m/min) | 0.5~10 | |
cutting head rotation rate per minute(rpm) | 430~1200 | |
main motor(kw） | 90 | |
total capacity（kw） | 120 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
