Overview

Yantai Haige Machine Tool Co., Ltd. is a large backbone enterprise in China's machinery industry, with grinder production as the main body, since the 1960s began to independent research and development, manufacturing of centerless grinder.The company has a group of CNC centerless grinder senior engineer design research and development team; and have senior skilled engineers who have advanced skills with machining, assembly and debugging. After more than 50 years of experience, has formed a CNC centerless grinder, precision CNC centerless grinder and automatic grinding production line etc, a full series, multi-specification centerless grinder products.

This machine tool is based on the exquisite technical strength, advanced structure design and rich experience accumulation.Strictly implement the (ISO9001) quality management system through mature and reliable process guarantee measures.Shaped with a high grinding precision, high cost-effective, stable and reliable CNC centerless grinder.Grinding cylinder and molding rotating parts, suitable for precision grinding with bulk parts.

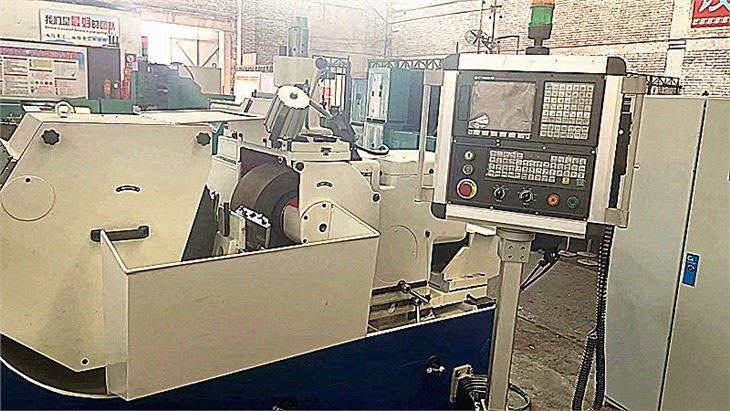

HGMJK1083 CNC centerless grinder is widely used for precision grinding of alloy, carbon steel and other material parts.It can achieve through feed grinding and plunge grinding.Is a high efficiency, stable and reliable CNC precision centerless grinder.The grinder control system adopts advanced digital control technology and mechanical transmission structure, with fault analysis and diagnosis function.

Main advantages of the machine tool:

◆ The machine bed and other main shell parts use high strength and low stress alloy cast iron, after secondary aging treatment, the structure layout is reasonable, with excellent thermal stability, to ensure that the machine tool long time, large batch precision machining needs;

◆ grinding wheel spindle realizes constant line speed grinding, grinding wheel maximum line speed (35 m/s), through the operator input grinding wheel diameter (value) and line speed (value) in HMI, the system automatically match the number of grinding wheel motor rotation;

◆ The spindle drive of the guiding wheel is switched between the working and dressing drive chains by means of a (drive chain switching lever), The speed of the dressing guide wheel (280 rpm) and the speed of the grinding guide wheel (10-60 rpm) are frequency-controlled, and the working speed of the guide wheel can be set on the HMI. The guiding wheel speed can be changed without changing the gears and the control is good

◆ The guide wheel rack guide rail feed adopts dovetail lubricating guide rail whichhas good feed stability and vibration resistance.

◆ guide wheel mechanism feeding (X axis) adopts absolute encoder high performance AC servo motor, low backgap planetary reducer, precision ball screw drive, making the feed more sensitive and accurate.

◆Grinding wheel dresser and guiding wheel dresser adopts oil cylinder drive, which can realize the guiding wheel profile dressing.

◆The cooling filter system is equipped with a magnetic separator, and the water tank volume is greater than 250L. The filter capacity of the magnetic separator (100L / min) and the grinding fluid flowing back from the machine dripping mouth firstly enter into the magnetic separator, and separate the iron cutting and impurities of the grinding liquid through the magnetic separator.Using a magnetic separator can reduce the number of grinding wheel dressing, improve the surface cleanliness of the grinding workpiece, and extend the service life of the grinding wheel and coolant.

◆ The machine control system adopts the high-performance bus-type GSK986 CNC control system developed by Guangzhou CNC Co. It is equipped with CNC controller, SC10-021G-100B-SS handheld unit with external expansion, GR2050T-LA1 servo drive, GSK-LinK (original) communication cable and (8.4" colour screen) HMI.

The operator does not need programming, but only realizes automatic feed grinding through the man-machine interface parameter setting operation. The handheld unit can be manually fed, and the feed resolution (0.001mm 0.01mm) can be selected by the handheld unit.It has the functions of fault diagnosis display, rapid retreat of X axis (guide wheel feed axis) during grinding wheel overload and emergency stop trigger, manual quantitative compensation during automatic grinding, and timing compensation of X axis.

◆ is configured with 1 servo shaft, X shaft (guide feed shaft)

◆ The ball screw positioning bearings of the feed axis are selected from NSK or FAG.

◆ ball screw rod is selected yifu, precision level: C3

◆ The reducer adopts Taiwan Shangying HAB142 precision planetary reducer.

◆ Configured with a special measuring tape for grinding wheel diameter, the benchmark end of the measuring tape is placed against the grinding wheel chuck, and the corresponding scale value between the grinding wheel (outer contour) and the measuring tape is the grinding wheel diameter (value), which is convenient for the operator to measure the grinding wheel diameter quickly and accurately and to input the grinding wheel diameter (value) into the HMI.

Main Parameters:

1 Vertical feed grinding

(1) The grinding diameter is 30~ φ120mm

(2) Maximum grinding length is 250mm

2 Maximum weight of work piece is 10.6kg

3 Maximum specification of grinding wheel P600×200×305mm

Minimum specification P480×200×305mm

4 Maximum specification of the guiding wheel is  PSA350×200×127mm

Minimum specification  PSA300×200×127mm

5 Grinding wheel linear speed  35m/s

6 Guide wheel rotation speed

(1) During working  10-60r / min

(2) During guide wheel dressing           280r / min

7 Guide wheel rotation angle (in vertical plane)  -2°~ + 5°

8 Grinding wheel dresser rotation angle ± 3°

9 The rotation angle of guiding wheel dresser

(1) In the vertical surface± 3°

(2) In horizontal surface -2°~ + 5°

310 The profiling height of the grinding wheel dresser15mm

3.11 The profiling height of the guiding wheel dresser   15mm

3.12 X-axis feed speed range: 1-300mm / min

3.13 Minimum feed amount of the X-axis  0.001mm

3.14 Feed per revolution of dresser dial0.015mm

3.15 The height from the bracket bottom to the center connection line between the grinding wheel and the guide wheel 285mm

3.16 Distance between grinding wheel center and guide wheel center

Maximum 670mm

Minimum  400mm

3.17 Operating pressure of the hydraulic system 0.6~0.7MPa

3.18 Hydraulic pump flow rate  6L / min

3.19 Cooling pump flow rate 100L / min

3.20 Lubrication pump flow rate  6L / min

3.21 Motor power

(1) Grinding wheel motor 18.5KW

(2) Guide wheel motor  2.2KW

(3) Hydraulic pump motor  0.25KW

(4) Lubrication pump motor  0.125KW

(5) Cooling pump motor  0.25KW

(6) X-axis feed servo motor 2.4Kw 15N.m

3.22 Overall dimensions of the machine tool 275×185×180Cm

3.23 The machine tool weight about 6,600 k g
