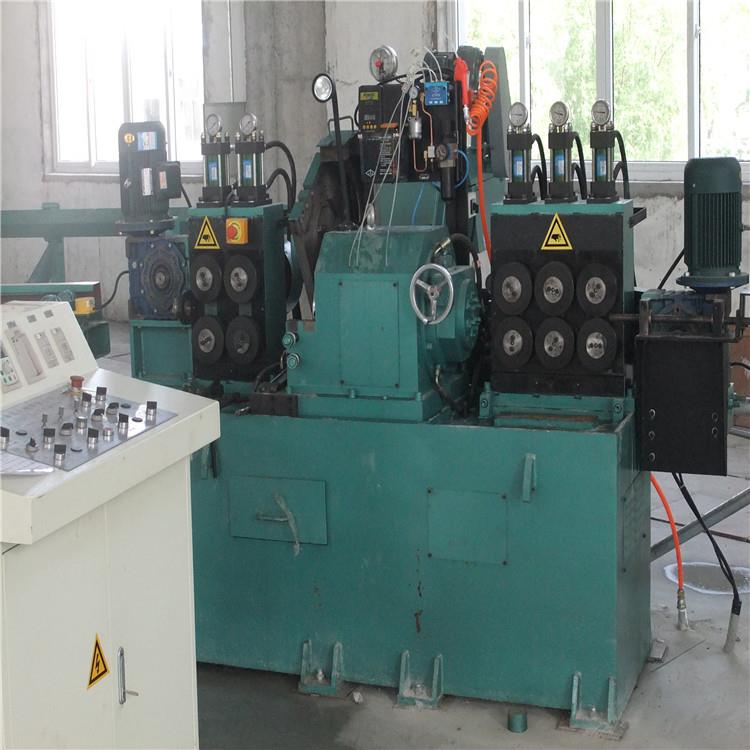

semi automatic stainless steel bar peeler

Semi automatic stainless steel bar peeler is widely used in stainless steel industry . It can process stainless steel bar with diameter: φ5-φ500. It can wipe off bar surface defects , like cracks , able the peeled bar enter next procedure. Machine consists of bed, spindle, air/oil lubrication system, front-clamping feeding system, rear-clamping extracting system, front guide and middle-rear guide system, etc.It is also environment friendly and scraps can be reused. Its noise level is also small than ordinary machine .



Main Technical Parameters—WXC100C

Specification		WXC100C
RAW MATERIALS	Diameter Range(mm)	Φ25~Φ100
	Raw Material Length(mm)	≥3000
	Tensile Strength (Mpa)	≤1100
	Surface Hardness	≤HB320
	Curvature(mm/m)	≤1.50
	Diameter Tolerance（mm）	According to GB 702-2004 second group
	Roundness（mm）	≤50% of the diameter tolerance
	Surface Roughness(Ra)	≤25～50mm
FINISHED GOODS	Diameter Range	Φ24~Φ98
	Unilateral Cutting Depth（mm）	0.5~1.5
	Diameter Tolerance	≤IT9（standard tolerance grade）
	Surface Roughness(Ra)	≤6.3μm
	Roundness（mm）	≤0.04
Feeding Cutting Speed（m/min）		0.5~5 (for continuous chips and high strength and hardness should reduce the speed）
Cutter Head Rotational Speed(rpm)		240~670（Six Poles）
Main Machine Motor Power(KW)		90
Auxiliary Machine Motor Power(KW)		7.5（clamping and feeding）+7.5(Carriage part）
Main Machine Outline Dimensions (LengthWidthHeight) m		4.4m X 3.0m X 2.5m
Full Set Machine Outline Dimensions (including auxiliary machine) (LengthWidthHeight) m		16m X 3.2m X 2.2m
Main Machine Weight (including auxiliary weight) (T)		13.5 (20.0)
Total Capacity(KW)		125
Compressed Air Source (user prepare by themselves）		0.5-0.8Mpa,1.8m3/min,0.8m3 gasholdertwo-stage oil-water separator and compressed air freezing drier
