CNC black wire peeler
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as black wire peeler, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.

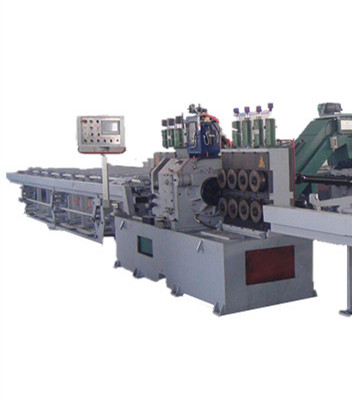

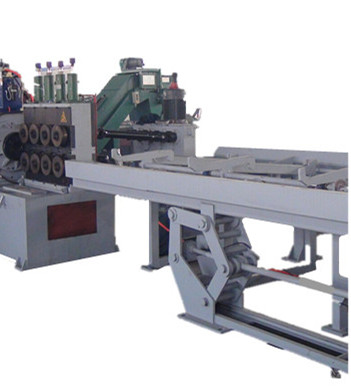

black wire peeler is one of our main products, The frame body is rectangle structure, some part is flat, some part is cant. It can be divided into Integral structure and split structure, required by customer. Pneumatic kick-out device is installed on top. Materials are loaded by hand. Among which, some thinner materials need to be paved by hand and spread down along the slop,near to the front block. The position of block is adjusted according to material size. The block is adjusted by hand, facilitating the kick-out arm move materials.
model | WXC255S | |
material requirement | diameter range (mm) | 100＜dia＜255 |
material length (mm) | ≥4000 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25～50μm | |
finished product | diameter range(mm) | 100≤dia≤250 |
diameter cutting depth(mm) | 1.0~5.0 | |
diameter tolerance | ≤h9 | |
surface roughness (Ra) | ≤3.2μm | |
feeding speed (m/min) | 0.2~2.5 | |
cutting head rotation rate per minute(rpm) | 70~400 | |
main motor(kw） | 160/200 | |
total capacity（kw） | 210/255 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
