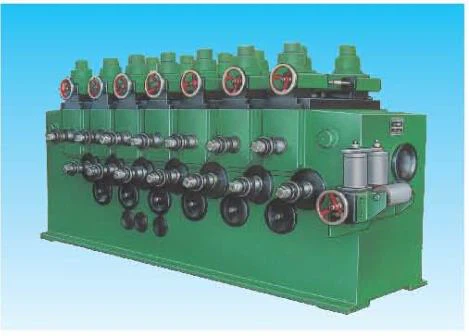

wire rod straightening machine
General Description:
Yantai Haige Machine Tools Co.,Ltd. was built in 1999, which specializes in producing steel finishing equipment, such as wire rod straightening machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine,Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience,our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.
Specific Description:
wire rod straightening machine
main structure of wire rod straightening machine: the main processing part of straightening machine is pre-stressed structured equipped with mechanical balancing device. Both two rollers are self driving and designed with angle adjusting mechanism.
JY40Z/JY40ZY | ||
material requirements | diameter range(mm) | 10＜dia＜40 |
length(mm) | ≥2000 | |
surface hardness | ≤HB320 | |
yeild strength(Mpa) | σb≤1000 | |
straightness(mm/m） | ≤3.0 for peeled material； ≤4.0 for black material | |
diameter tolerance | ≤h10 for peeled material；d-2-GB/T702-2004 for black material | |
roundness | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤6.3μm for peeled material | |
after straightening | straightness（mm/m） | ≤0.25 for peeled material；≤1.0 for black material |
surface roughness（Ra） | ≤0.8μm for peeled material；better than raw material for black material | |
diameter tolerance | ≤h9 for peeled material；better than raw material for black material | |
number of roller(pcs) | 2 | |
roller diameter(mm) | Φ200 | |
feeding speed(m/min) | 2~12 | |
main motor(kw) | 22kw X 2 / 30kwX2 | |
Lifting motor(kw) | 1.5 | |
total capacity(kw) | 50 / 66 | |
