CNC aluminium rod peeling machine
Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as aluminium rod peeling machine, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.

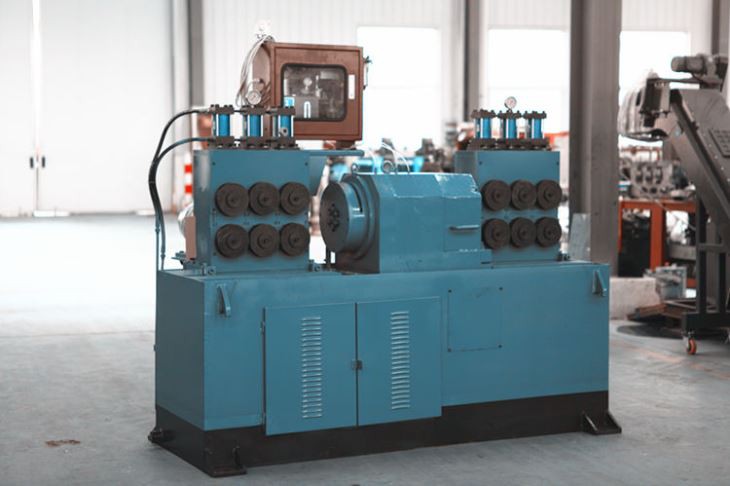

Aluminium rod peeling machine is one of our main products, which can wipe off the the surface crack, oxide layer and decarburized layer of the aluminium rod. The front guide clamping device is designed in pressure self-locking loop and at the same time, semi-steel clamping structure. This kind of design looses the requirement for the external diameter accuracy which make customer easy to use, and enlarges the range of process.
model | WXC130S | |
material requirement | diameter range (mm) | 35＜dia＜135 |
material length (mm) | ≥2800 | |
yield strength(Mpa) | ≤1100 | |
surface hardness | ≤HB320 | |
straightness (mm/m) | ≤1.5 | |
diameter tolerance | according to GB 702-2004 second group | |
roundness(mm) | ≤50% of diameter tolerance | |
surface roughness(Ra) | ≤25～50μm | |
finished product | diameter range(mm) | 35≤dia≤130 |
diameter cutting depth(mm) | 1.0~5.0 | |
diameter tolerance | ≤h9 | |
surface roughness (Ra) | ≤3.2μm | |
feeding speed (m/min) | 0.3~6 | |
cutting head rotation rate per minute(rpm) | 240~670 | |
main motor(kw） | 110 | |
total capacity（kw） | 140 | |
compressed air (prepared by user) | 0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine | |
